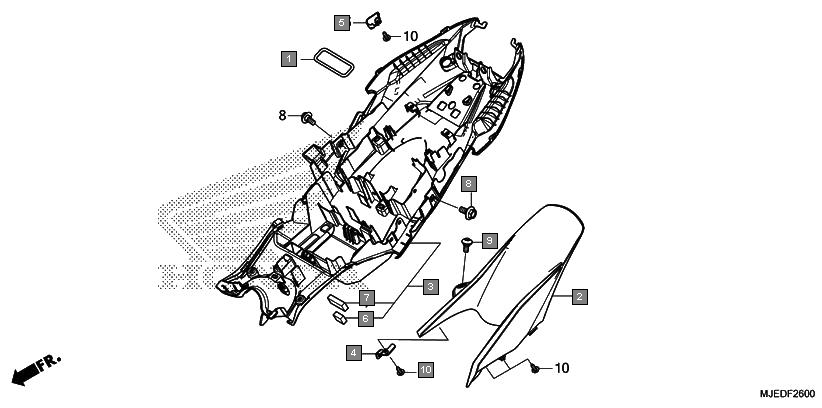

Motorcycles CBR650F CBR650FAG Frame Rear fender
Ref.No. Part No. Description Oty
1 50290MBL610 BAND, U-LOCK 1
2 80103MJED00 FENDER C, RR. 1
3 80105MJED00 FENDER COMP. B, RR. 1
4 80106MJED00 STAY C, RR. FENDER 1
5 80107MJED00 COVER B, R. RR. FENDER 1
6 80109MJED00 RUBBER B, RR. FENDER SPONGE 1
7 83705MT3300 RUBBER, SIDE COVER SPONGE 1
8 90111187000 BOLT, FLANGE, 6MM 2
9 90115MGZJ00 SCREW, SPECIAL, 6X14 1
10 9390324380 SCREW, TAPPING, 4X12 4
