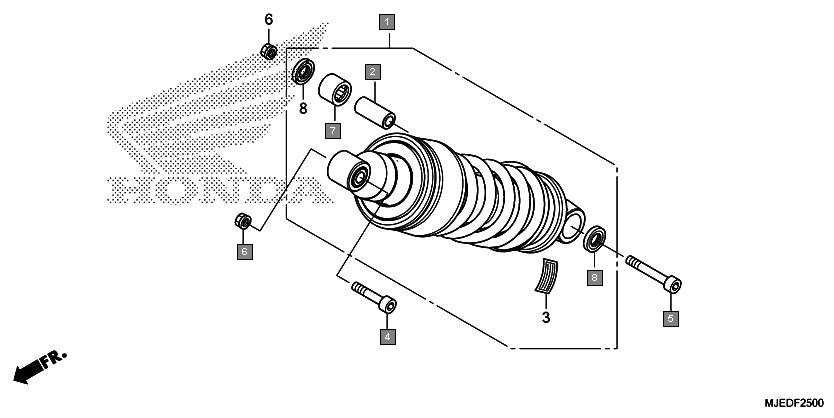

Motorcycles CBR650F CBR650FAG Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400MJEA01 CUSHION ASSY., RR.(SHOWA) 1
2 52463MGZJ00 COLLAR, CUSHION CONNECTING ROD 1
3 87516MBL610 LABEL, RR. DAMPER 1
4 90107MJED00 BOLT, SOCKET, 10X51 1
5 90108MJED00 BOLT, SOCKET, 10X70 1
6 90304MJED01 NUT, U, FLANGE, 10MM 2
7 91071KV3005 BEARING, NEEDLE(KOYO) 1
8 91262KV3831 DUST SEAL, 17X24X5(ARAI) 2
