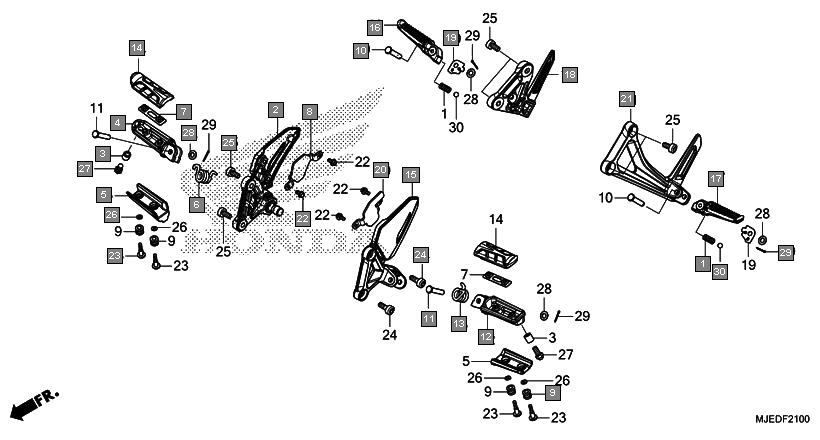

Motorcycles CBR650F CBR650FAG Frame Step
Ref.No. Part No. Description Oty
1 28333300000 SPRING, KICK STARTER STOPPER 2
2 50600MJED00 HOLDER, R. MAIN STEP 1
3 50611MJED00 COLLAR, 12.7X13 2
4 50612MJED00 ARM, R. STEP 1
5 50615MGZJ00 PLATE, STEP LOWER 2
6 50617445840 SPRING, R. STEP RETURN 1
7 50619MM5000 PLATE, STEP SETTING 2
8 50621MJED00 WEIGHT, R. STEP 1
9 50622MBGD00 RUBBER, STEP LOWER PLATE 4
10 50639MFLD20 PIN, STEP BAR 2
11 50639ML0010 PIN, STEP BAR 2
12 50642MJED00 ARM, L. STEP 1
13 50644445840 SPRING, L. STEP RETURN 1
14 50661MJED00 RUBBER, MAIN STEP 2
15 50700MJED00 HOLDER, L. MAIN STEP 1
16 50711MGSD30 ARM, R. PILLION STEP 1
17 50712MGSD30 ARM, L. PILLION STEP 1
18 50715MJED00 HOLDER, R. PILLION STEP 1
19 50718MN8000 PLATE, PILLION STEP CLICK 2
20 50721MJED00 WEIGHT, L. STEP 1
21 50725MJED00 HOLDER, L. PILLION STEP 1
22 90002892000 BOLT, FLANGE, 5X10 4
23 90115MBGD00 BOLT, STEP LOWER PLATE 4
24 90116MGZJ00 BOLT, SOCKET, 8X22 2
25 90116MJED00 BOLT, SOCKET, 8X18 6
26 90483MERD00 WASHER, PLAIN, 5MM 4
27 92501080220A BOLT, CAP, 8X22 2
28 9410208000 WASHER, PLAIN, 8MM 4
29 9420120150 PIN, SPLIT, 2.0X15 4
30 9621108000 BALL, STEEL, #8(1/4) 2
