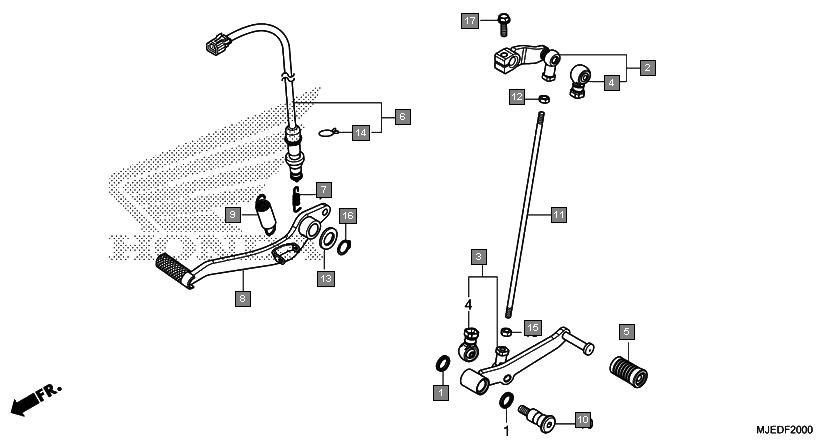

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24706MK3770 | RUBBER, DUST SEAL | 2 |
| 2 | 24710MJED00 | ARM COMP., GEAR CHANGE | 1 |
| 3 | 24720MJED00 | PEDAL COMP., GEAR CHANGE | 1 |
| 4 | 24724MBWD21 | COVER, DUST | 2 |
| 5 | 24781KSP860 | RUBBER, CHANGE PEDAL | 1 |
| 6 | 35350MJED02 | SWITCH ASSY., RR. STOP | 1 |
| 7 | 35357HP0A00 | SPRING, STOP SWITCH | 1 |
| 8 | 46500MJED00 | PEDAL COMP., BRAKE | 1 |
| 9 | 46513KYJ900 | SPRING ASSY., BRAKE PEDAL | 1 |
| 10 | 90113MGZJ00 | BOLT, CHANGE PIVOT | 1 |
| 11 | 90165MJED00 | BOLT, TIE ROD | 1 |
| 12 | 90301MGZJ00 | NUT, SPECIAL, 6MM (LEFT HAND THREAD) | 1 |
| 13 | 90557230000 | WASHER, 15.2X25 | 1 |
| 14 | 90651MGE641 | CLIP, SWITCH COVER | 1 |
| 15 | 94001060700S | NUT, HEX., 6MM | 1 |
| 16 | 9451115000 | CIRCLIP, EXTERNAL, 15MM | 1 |
| 17 | 957010602007 | BOLT, FLANGE, 6X20 | 1 |
