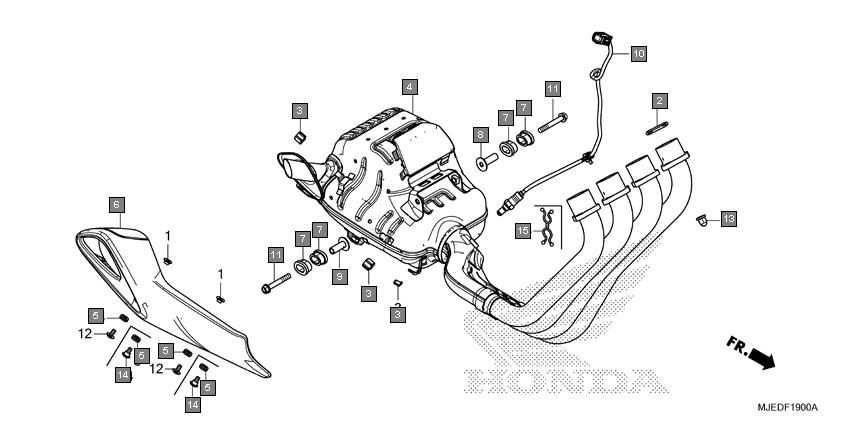

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18185MGVD00 | COLLAR, MUFFLER MOUNTING | 2 |
2 | 18291MN4920 | GASKET, EX. PIPE | 4 |
3 | 18293MCAA20 | RUBBER, PROTECTOR PACKING | 3 |
4 | 18300MJED00 | MUFFLER COMP. | 1 |
5 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
6 | 18355MJED00 | PROTECTOR, MUFFLER | 1 |
7 | 18422MGZJ00 | RUBBER, EX. PIPE MOUNTING | 4 |
8 | 18423MJED00 | COLLAR, L. MUFFLER MOUNTING | 1 |
9 | 18424MJED00 | COLLAR, R. MUFFLER MOUNTING | 1 |
10 | 36531MJED01 | SENSOR, OXYGEN | 1 |
11 | 90103MJED00 | BOLT, FLANGE, 8X55 | 2 |
12 | 90106KRG000 | SCREW, PAN, 6X12 | 2 |
13 | 90304KPH700 | NUT, HEX. CAP, 8MM | 8 |
