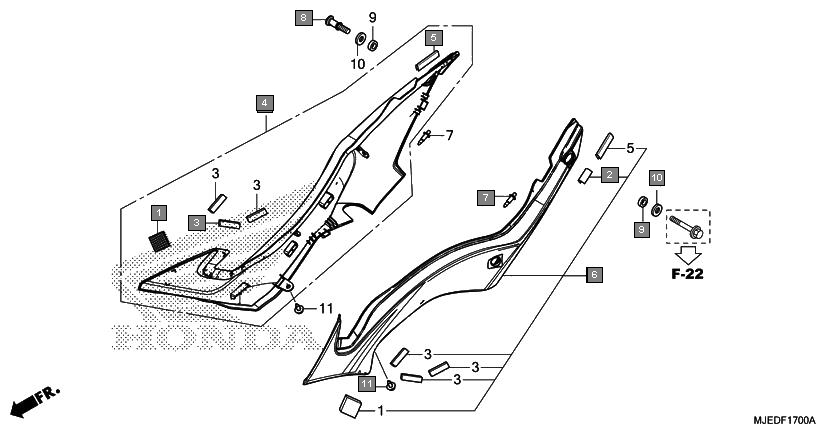

Motorcycles CBR650F CBR650FAG Frame Side cover
Ref.No. Part No. Description Oty
1 17542MJED00 FASTENER D, DUAL LOCK, 20X20 2
2 64122MCZ000 RUBBER, PROTECTOR 1
3 81257KVY960 RUBBER, PROTECTOR 6
4 83500MJED20ZA COVER ASSY., R. SIDE(WL) *TYPE1* 1
5 83512MJED00 FILM, PROTECTOR 2
6 83600MJED20ZA COVER ASSY., L. SIDE(WL) *TYPE1* 1
7 90116MCSG00 RIVET, PUSH 2
8 90117MAT000 BOLT, HOOK, 8X20 1
9 90502MJED00 COLLAR, 8.5X16X6 2
10 90514921000 WASHER, 8MM 2
11 90683GR1003 CLIP, BODY COVER 2
