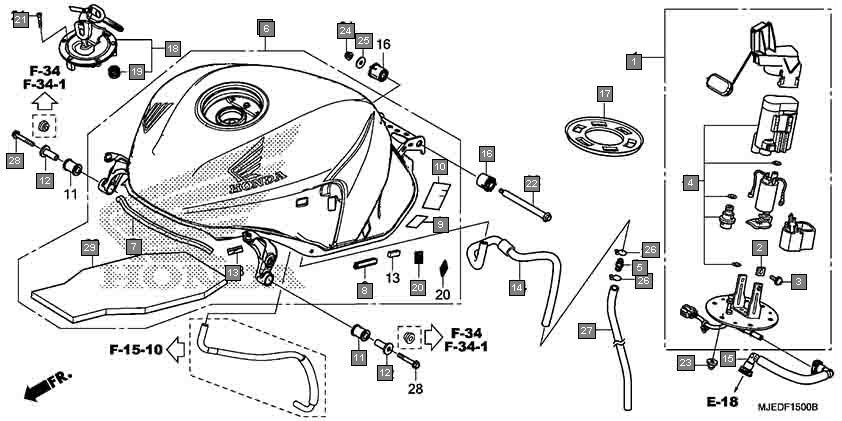

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16700MJED02 | PUMP ASSY., FUEL | 1 |
| 2 | 16711MGSD31 | STOPPER | 2 |
| 3 | 16712MGSD31 | SCREW, 4X6.6 | 2 |
| 4 | 16730MKAD82 | FILTER ASSY., FUEL | 1 |
| 5 | 17359419670 | JOINT, BREATHER TUBE | 1 |
| 6 | 17500MJED20ZA | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
| 7 | 17515MJED00 | TRIM, FUEL TANK | 1 |
| 8 | 17516MEED00 | TRIM, FUEL TANK | 2 |
| 9 | 17521KY1300 | SEAL, TANK | 2 |
| 10 | 17521MJED00 | FILM, PROTECTOR | 1 |
| 11 | 17534MFJD00 | RUBBER, RR. TANK MOUNTING | 2 |
| 12 | 17538KZZ900 | COLLAR | 2 |
| 13 | 17540MJED00 | FASTENER A, DUAL LOCK, 8X25 | 4 |
| 14 | 17543MJED00 | TUBE, DRAIN | 1 |
| 15 | 17570MJED01 | HOSE COMP., FUEL FEED | 1 |
| 16 | 17572MJED00 | CUSHION, RR. FUEL TANK | 2 |
| 17 | 17574MGSD30 | PACKING, BASE | 1 |
| 18 | 17620MJED01 | CAP COMP., FUEL FILLER | 1 |
| 19 | 17621MGPD61 | SEAL, BREATHER | 1 |
| 20 | 64243MEW920 | FASTENER B, DUAL LOCK, 20X20 | 4 |
| 21 | 90120MJED00 | BOLT, SOCKET, 4X25(SUS) | 3 |
| 22 | 90135MJED00 | BOLT, HINGE, 10X102.4 | 1 |
| 23 | 90201415000 | NUT, CAP, 6MM | 6 |
| 24 | 90301473003 | NUT, U, 6MM(FUSERASHI) | 1 |
| 25 | 9410306800 | WASHER, PLAIN, 6MM | 1 |
| 26 | 9500202130 | CLIP, TUBE(B12.5) | 2 |
| 27 | 950058041020 | TUBE, 8X410(95005-80001-20M) | 1 |
| 28 | 957010604000 | BOLT, FLANGE, 6X40 | 2 |
