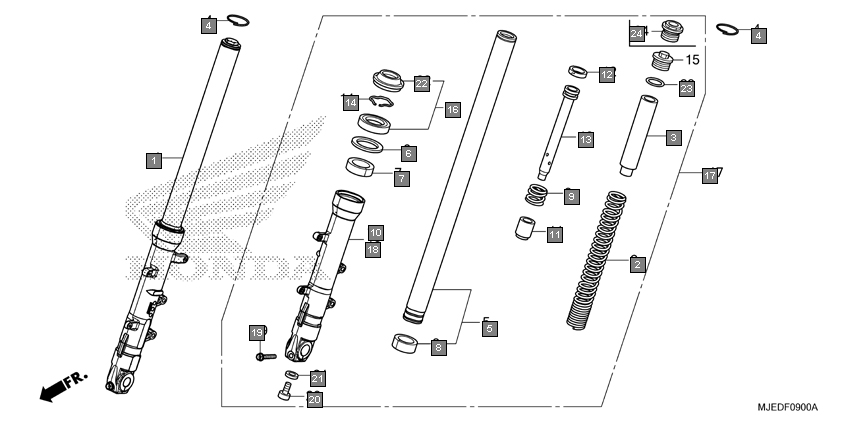

Motorcycles CBR650F CBR650FAG Frame Front fork
Ref.No. Part No. Description Oty
1 51400MJED01 FORK ASSY., R. FR.(SHOWA) 1
2 51401MJED01 SPRING, FR. FORK(SHOWA) 2
3 51402MGZJ01 COLLAR, SPRING 2
4 51405MB4003 RING, STOPPER 2
5 51410MJED01 PIPE COMP., FR. FORK(SHOWA) 2
6 51412MB4003 RING, BACK UP(SHOWA) 2
7 51414MFJA51 BUSH, GUIDE 2
8 51415MFJA51 BUSH, SLIDER 2
9 51416KF0003 SPRING, FR. REBOUND(SHOWA) 2
10 51420MJED01 CASE, R. BOTTOM 1
11 51432MV9003 PIECE, OIL LOCK(SHOWA) 2
12 51437KV3701 RING, PISTON 2
13 51440MJED01 PIPE, SEAT 2
14 51447KA4711 RING, OIL SEAL STOPPER(SHOWA) 2
15 51454MM9671 BOLT, FR. FORK 2
16 51490MERR61 SEAL SET, FR. FORK 2
17 51500MJED01 FORK ASSY., L. FR.(SHOWA) 1
18 51520MJED01 CASE, L. BOTTOM 1
19 90108MR7000 BOLT, FLANGE, 8X40 2
20 90116KV3701 BOLT, SOCKET, 8MM(SHOWA) 2
21 90544283000 WASHER, SPECIAL, 8MM(SHOWA) 2
22 91254MEED01 SEAL, DUST 2
23 91356KF0003 O-RING, 33.2X2.4 2
