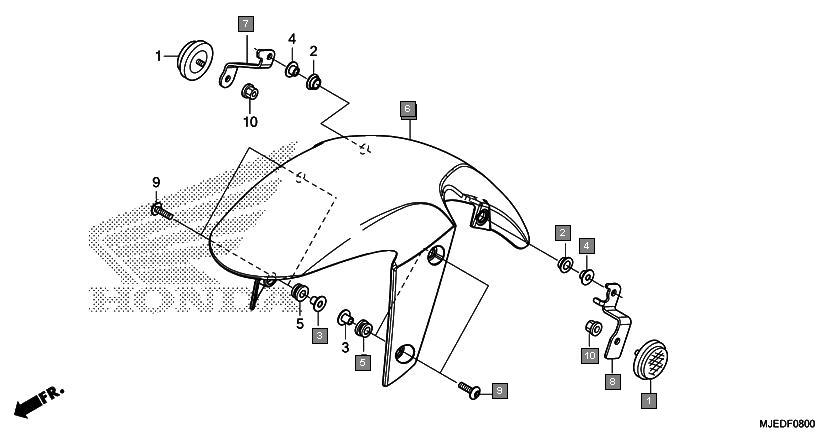

Motorcycles CBR650F CBR650FAG Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 61103KPF910 RUBBER, FR. FENDER MOUNTING 2
3 61103KRY900 COLLAR A, FR. FENDER 4
4 61105KPF910 COLLAR, FR. FENDER MOUNTING 2
5 61105KRY900 RUBBER, FR. FENDER MOUNTING 4
6 61110MJED10ZH FENDER SET, FR.(WL) *TYPE5* 1
7 61115MJEA00 STAY, R. FR. REFLECTOR 1
8 61116MJEA00 STAY, L. FR. REFLECTOR 1
9 90130KYJ900 SCREW, PAN, 6X22 4
10 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
