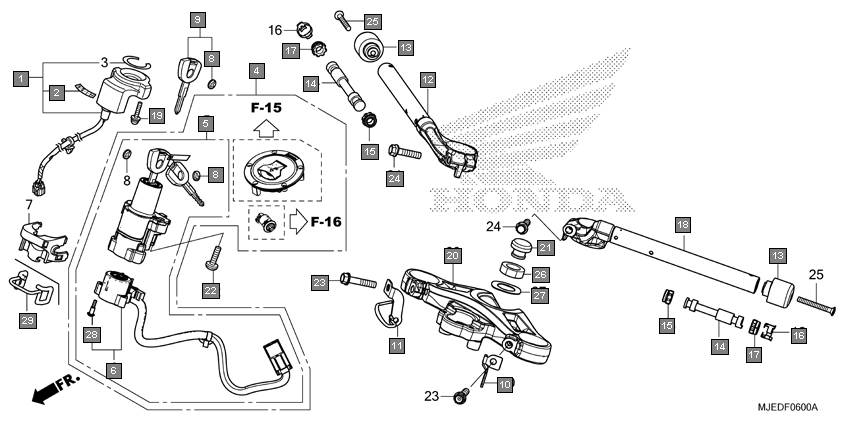

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30430MJED01 | RECEIVER UNIT | 1 |
2 | 30432MBWE02 | MARK, RECEIVER(HONDA LOCK) | 1 |
3 | 30433MBW602 | SEAL, IGNITION SWITCH | 1 |
4 | 35010MJED02 | KEY SET | 1 |
5 | 35100MJED02 | SWITCH ASSY., COMBINATION | 1 |
6 | 35101MJED01 | BASE COMP., CONTACT | 1 |
7 | 35105MFJD01 | GUIDE, CORD | 1 |
8 | 35113MJED00 | EMBLEM, KEY | 4 |
9 | 35113MJED00 | EMBLEM, KEY | 2 |
10 | 35121MJED02 | KEY, BLANK | 1 |
11 | 35910MJED00 | GUIDE, L. FR. CORD | 1 |
12 | 45157MJED00 | CLAMPER C, FR. BRAKE HOSE | 1 |
13 | 53100MJED00 | PIPE COMP., R. STEERING HANDLE | 1 |
14 | 53104MGZJ00 | WEIGHT, STEERING HANDLE | 2 |
15 | 53105MGZJ00 | WEIGHT B, STEERING HANDLE | 2 |
16 | 53107MB6630 | RUBBER B, HANDLE WEIGHT | 2 |
17 | 53108MJ0000 | RING, HANDLE WEIGHT SNAP | 2 |
18 | 53109MV4000 | RUBBER B, HANDLE WEIGHT | 2 |
19 | 53150MJED00 | PIPE COMP., L. STEERING HANDLE | 1 |
20 | 53192MFL000 | SCREW-WASHER, 5X25 | 2 |
21 | 53230MJED00 | BRIDGE, FORK TOP | 1 |
22 | 53232MJ4670 | CAP, STEERING STEM NUT | 1 |
23 | 90107MBG000 | BOLT, ONE-WAY, 8MM | 2 |
24 | 90108MR7000 | BOLT, FLANGE, 8X40 | 2 |
25 | 90112MGZJ00 | BOLT, FLANGE, 8X35 | 2 |
26 | 90191KYJ900 | SCREW, OVAL, 6X50 | 2 |
27 | 90304KGA900 | NUT, STEERING STEM | 1 |
28 | 90503KGA900 | WASHER, STEERING STEM | 1 |
29 | 91059KY2711 | SCREW, TAPPING, 3X16 | 3 |
