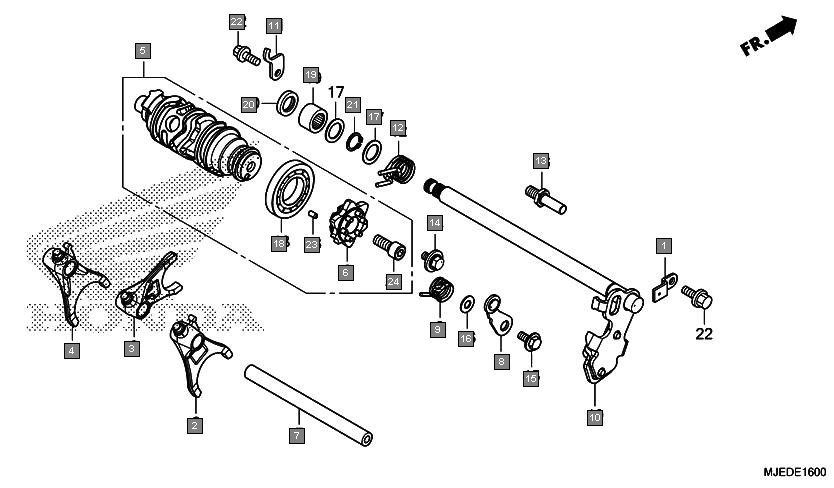

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 14623MV1000 | PLATE, TENSIONER SETTING | 1 |
| 2 | 24211MJED00 | FORK, R. GEARSHIFT | 1 |
| 3 | 24212MJED00 | FORK, GEARSHIFT CENTER | 1 |
| 4 | 24213MJED00 | FORK, L. GEARSHIFT | 1 |
| 5 | 24310MJED00 | DRUM COMP., GEARSHIFT | 1 |
| 6 | 24315MJED00 | CENTER COMP., SHIFT DRUM | 1 |
| 7 | 24321MAS000 | SHAFT, GEARSHIFT FORK | 1 |
| 8 | 24430MGZJ00 | STOPPER COMP., GEARSHIFT DRUM | 1 |
| 9 | 24435MJED00 | SPRING, SHIFT DRUM STOPPER | 1 |
| 10 | 24610MJED00 | SPINDLE COMP., GEARSHIFT | 1 |
| 11 | 24612MAL600 | PLATE, SPINDLE | 1 |
| 12 | 24651MBB000 | SPRING, SHIFT RETURN | 1 |
| 13 | 24652MGZJ00 | PIN, SHIFT RETURN SPRING | 1 |
| 14 | 90021MGZJ00 | BOLT-WASHER, 6X12 | 2 |
| 15 | 90023MGZJ00 | PIVOT, SHIFT DRUM STOPPER ARM | 1 |
| 16 | 90417360000 | WASHER, DRUM STOPPER | 1 |
| 17 | 90451155000 | WASHER, 14MM | 2 |
| 18 | 91008MFJD01 | BEARING, SPECIAL BALL, 6500 | 1 |
| 19 | 91106MCF003 | BEARING, NEEDLE, 14X22X16 | 1 |
| 20 | 91203KSP911 | OIL SEAL, 14X22X5(ARAI) | 1 |
| 21 | 9451014000 | CIRCLIP, EXTERNAL, 14MM | 1 |
| 22 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
| 23 | 9622040080 | ROLLER, 4X8 | 1 |
| 24 | 966000802010 | BOLT, SOCKET, 8X20 | 1 |
