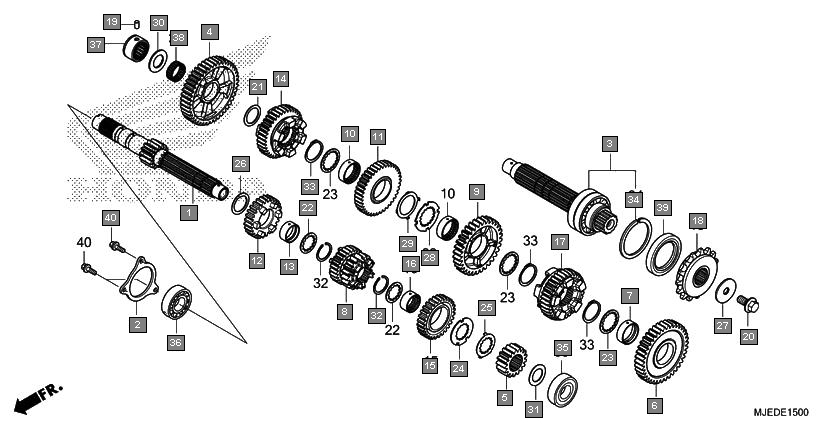

Motorcycles CBR650F CBR650FAG Engine Transmission
Ref.No. Part No. Description Oty
1 23211MJED00 MAINSHAFT(14T) 1
2 23212MJED00 PLATE, BEARING SETTING 1
3 23220MJED00 COUNTERSHAFT COMP. 1
4 23421MJED00 GEAR, COUNTER FIRST(43T) 1
5 23431MJED00 GEAR, MAINSHAFT SECOND(17T) 1
6 23441MJED00 GEAR, COUNTERSHAFT SECOND(38T) 1
7 23442MS2610 COLLAR, 30X11.2 1
8 23451MJED00 GEAR, MAINSHAFT THIRD & FOURTH (18T/25T) 1
9 23461MJED00 GEAR, COUNTER THIRD(32T) 1
10 23462MAT000 COLLAR, SPLINE, 30X11 2
11 23481MJED00 GEAR, COUNTER FOURTH(38T) 1
12 23491MJED00 GEAR, MAINSHAFT FIFTH(27T) 1
13 23492MGZJ00 COLLAR, 25X28X12 1
14 23501MJED00 GEAR, COUNTERSHAFT FIFTH(36T) 1
15 23511MJED00 GEAR, MAINSHAFT SIXTH(28T) 1
16 23512MV9670 COLLAR, SPLINE, 25X28X13 1
17 23521MJED00 GEAR, COUNTERSHAFT SIXTH(34T) 1
18 23801MJED00 SPROCKET COMP., DRIVE(15T) 1
19 24261283000 PIN, GEARSHIFT FORK GUIDE 1
20 90037422003 BOLT, SPECIAL, 10MM 1
21 90402HA5000 WASHER, THRUST, 24MM 1
22 90451KY2000 WASHER, SPLINE, 25X31X1.5 2
23 90452MAT000 WASHER, SPLINE, 30X36X1.5 3
24 90454KYJ900 WASHER, SPLINE, 25X42X1.6 1
25 90455KYJ900 WASHER, LOCK, 25MM 1
26 90456MA6000 WASHER, THRUST, 25MM 1
27 90459438000 WASHER, 10.2MM 1
28 90463MAT000 WASHER, SPLINE, 30MM 1
29 90464MAT000 WASHER, LOCK, 30MM 1
30 90469759000 SHIM J, FINAL REDUCTION THIRD GEAR(2.0MM) 1
31 90554MEL000 WASHER, THRUST, 20MM 1
32 90601107000 CIRCLIP, 25MM 2
33 90604MM5000 CIRCLIP, 30MM 3
34 90606MM5000 RING, SNAP, 62MM 1
35 91001464003 BEARING, RADIAL BALL, 6204U (TOYO) 1
36 91004MFJD01 BEARING, BALL, 6305 1
37 91022KT7003 BEARING, NEEDLE, 20MM(NTN) 1
38 91026MJED01 BEARING, NEEDLE, 24X28X10(SPL) 1
39 91207MAL601 OIL SEAL, 40X62X8.4 1
40 957010601400 BOLT, FLANGE, 6X14 3
