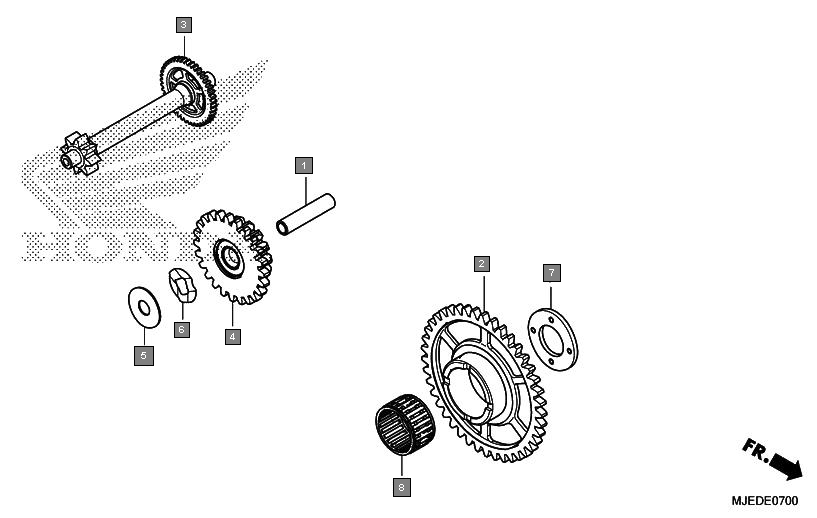

Motorcycles CBR650F CBR650FAG Engine Starting driven gear
Ref.No. Part No. Description Oty
1 28102ME9000 PIN, 10X44 1
2 28111MJED00 GEAR COMP., STARTER DRIVEN (37T) 1
3 28130MJED00 GEAR COMP., STARTER REDUCTION (43T/8T) 1
4 28140MJED00 GEAR B, STARTER REDUCTION (24T/15T) 1
5 90401MEE000 WASHER, 10X28X1 1
6 90435MEE000 WASHER, WAVE 1
7 90456MFAD00 WASHER, THRUST, 22.1X42X3 1
8 91101MJED02 BEARING, NEEDLE, 30X35X20 1
