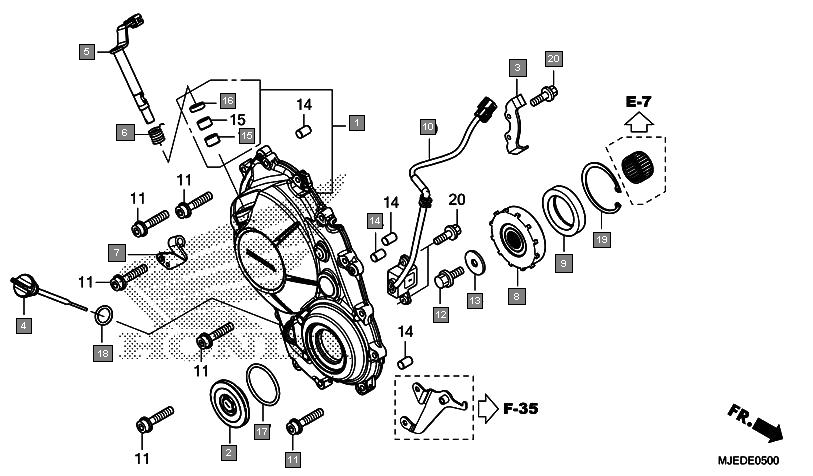

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11330MJED01 | COVER COMP., R. CRANKCASE | 1 |
| 2 | 11332MGZJ00 | CAP, 45MM | 1 |
| 3 | 11334MJED00 | CLAMP, PULSE GENERATOR CORD | 1 |
| 4 | 15650MJED00 | GAUGE, OIL LEVEL | 1 |
| 5 | 22810MJED00 | LEVER COMP., CLUTCH | 1 |
| 6 | 22815MJED00 | SPRING, CLUTCH LEVER | 1 |
| 7 | 22821MJED00 | RECEIVER, CLUTCH CABLE | 1 |
| 8 | 28115MJED00 | OUTER, STARTING CLUTCH | 1 |
| 9 | 28125MJED01 | CLUTCH, ONE WAY | 1 |
| 10 | 30300MJED01 | GENERATOR ASSY., PULSE | 1 |
| 11 | 90003MGZJ00 | BOLT, FLANGE SOCKET, 6X28 | 14 |
| 12 | 90013430000 | BOLT, SPECIAL, 10X25 | 1 |
| 13 | 90405MJED00 | WASHER, 10.5X31.8 | 1 |
| 14 | 90701MV9670 | DOWEL PIN, 10X16 | 4 |
| 15 | 91053MFJD01 | BEARING, NEEDLE, 12X16X10 | 2 |
| 16 | 91204KK0003 | OIL SEAL, 12X18X5(ARAI) | 1 |
| 17 | 91301ML7003 | O-RING, 48.1X3.6(ARAI) | 1 |
| 18 | 91307KF0003 | O-RING, 18X3(ARAI) | 1 |
| 19 | 9452063150 | CIRCLIP, INTERNAL, 63MM | 1 |
| 20 | 957010601400 | BOLT, FLANGE, 6X14 | 4 |
