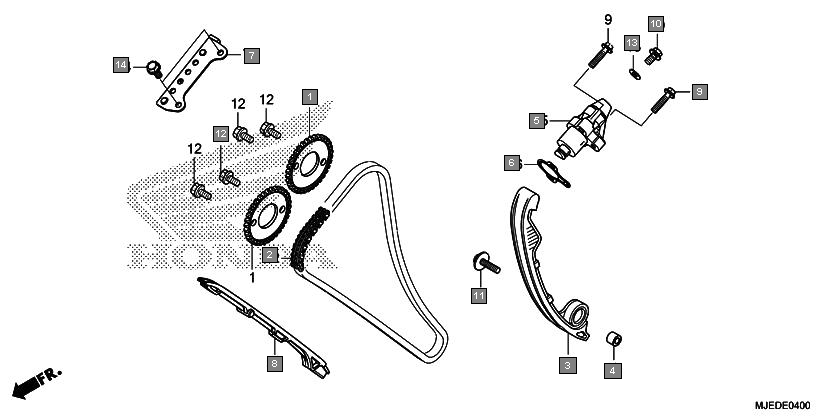

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 14321MJED00 | SPROCKET, CAM(34T) | 2 |
| 2 | 14401MJED01 | CHAIN, CAM(122L)(DAIDO) (SCR-0409 SV) | 1 |
| 3 | 14510MJED02 | TENSIONER ASSY., CAM CHAIN | 1 |
| 4 | 14517KYJ900 | COLLAR, TENSIONER | 1 |
| 5 | 14520MJED01 | LIFTER ASSY., TENSIONER | 1 |
| 6 | 14523MJED00 | GASKET, TENSIONER HOLE | 1 |
| 7 | 14546MJED00 | GUIDE COMP. B, CAM CHAIN | 1 |
| 8 | 14611MJED00 | GUIDE A, CAM CHAIN | 1 |
| 9 | 90003MJED00 | BOLT, FLANGE, 6X25 | 2 |
| 10 | 90004GHB600 | BOLT, FLANGE, 6X10(NSHF) | 1 |
| 11 | 90022KYJ900 | BOLT-WASHER, 6X25 | 1 |
| 12 | 90082HA0000 | BOLT, FLANGE KNOCK, 7X10.5 | 4 |
| 13 | 90442397000 | WASHER, SEALING, 6MM | 1 |
| 14 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
