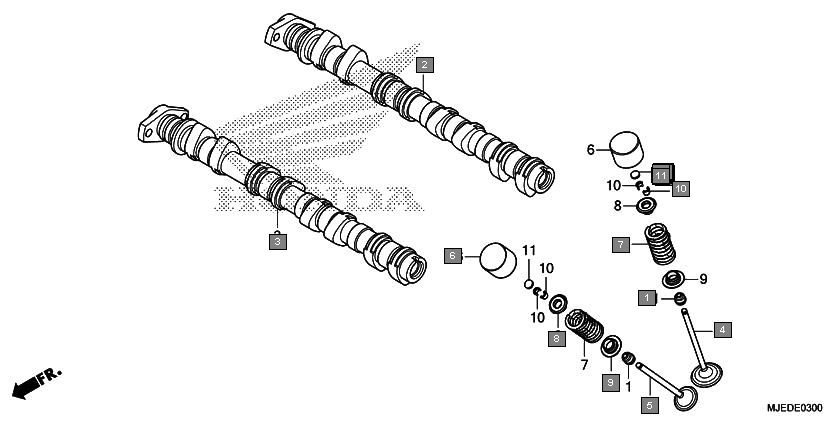

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209ML0722 | SEAL, VALVE STEM(ARAI) | 16 |
2 | 14110MJED00 | CAMSHAFT COMP., IN. | 1 |
3 | 14210MJED00 | CAMSHAFT COMP., EX. | 1 |
4 | 14711MJED00 | VALVE, IN. | 8 |
5 | 14721MJED00 | VALVE, EX. | 8 |
6 | 14731MFLD21 | LIFTER, VALVE | 16 |
7 | 14751MJED00 | SPRING, VALVE | 16 |
8 | 14771MJED00 | RETAINER, VALVE SPRING | 16 |
9 | 14775MJED00 | SEAT, VALVE SPRING | 16 |
10 | 14781MJED00 | COTTER, VALVE | 32 |
11 | 14901KT7013 | SHIM, TAPPET(1.200) | 16 |
12 | 14902KT7013 | SHIM, TAPPET(1.225) | 16 |
13 | 14903KT7013 | SHIM, TAPPET(1.250) | 16 |
14 | 14904KT7013 | SHIM, TAPPET(1.275) | 16 |
15 | 14905KT7013 | SHIM, TAPPET(1.300) | 16 |
16 | 14906KT7013 | SHIM, TAPPET(1.325) | 16 |
17 | 14907KT7013 | SHIM, TAPPET(1.350) | 16 |
18 | 14908KT7013 | SHIM, TAPPET(1.375) | 16 |
19 | 14909KT7013 | SHIM, TAPPET(1.400) | 16 |
20 | 14910KT7013 | SHIM, TAPPET(1.425) | 16 |
21 | 14911KT7013 | SHIM, TAPPET(1.450) | 16 |
22 | 14912KT7013 | SHIM, TAPPET(1.475) | 16 |
23 | 14913KT7013 | SHIM, TAPPET(1.500) | 16 |
24 | 14914KT7013 | SHIM, TAPPET(1.525) | 16 |
25 | 14915KT7013 | SHIM, TAPPET(1.550) | 16 |
26 | 14916KT7013 | SHIM, TAPPET(1.575) | 16 |
27 | 14917KT7013 | SHIM, TAPPET(1.600) | 16 |
28 | 14918KT7013 | SHIM, TAPPET(1.625) | 16 |
29 | 14919KT7013 | SHIM, TAPPET(1.650) | 16 |
30 | 14920KT7013 | SHIM, TAPPET(1.675) | 16 |
31 | 14921KT7013 | SHIM, TAPPET(1.700) | 16 |
32 | 14922KT7013 | SHIM, TAPPET(1.725) | 16 |
33 | 14923KT7013 | SHIM, TAPPET(1.750) | 16 |
34 | 14924KT7013 | SHIM, TAPPET(1.775) | 16 |
35 | 14925KT7013 | SHIM, TAPPET(1.800) | 16 |
36 | 14926KT7013 | SHIM, TAPPET(1.825) | 16 |
37 | 14927KT7013 | SHIM, TAPPET(1.850) | 16 |
38 | 14928KT7013 | SHIM, TAPPET(1.875) | 16 |
39 | 14929KT7013 | SHIM, TAPPET(1.900) | 16 |
40 | 14930KT7013 | SHIM, TAPPET(1.925) | 16 |
41 | 14931KT7013 | SHIM, TAPPET(1.950) | 16 |
42 | 14932KT7013 | SHIM, TAPPET(1.975) | 16 |
43 | 14933KT7013 | SHIM, TAPPET(2.000) | 16 |
44 | 14934KT7013 | SHIM, TAPPET(2.025) | 16 |
45 | 14935KT7013 | SHIM, TAPPET(2.050) | 16 |
46 | 14936KT7013 | SHIM, TAPPET(2.075) | 16 |
47 | 14937KT7013 | SHIM, TAPPET(2.100) | 16 |
48 | 14938KT7013 | SHIM, TAPPET(2.125) | 16 |
49 | 14939KT7013 | SHIM, TAPPET(2.150) | 16 |
50 | 14940KT7013 | SHIM, TAPPET(2.175) | 16 |
51 | 14941KT7013 | SHIM, TAPPET(2.200) | 16 |
52 | 14942KT7013 | SHIM, TAPPET(2.225) | 16 |
53 | 14943KT7013 | SHIM, TAPPET(2.250) | 16 |
54 | 14944KT7013 | SHIM, TAPPET(2.275) | 16 |
55 | 14945KT7013 | SHIM, TAPPET(2.300) | 16 |
56 | 14946KT7013 | SHIM, TAPPET(2.325) | 16 |
57 | 14947KT7013 | SHIM, TAPPET(2.350) | 16 |
58 | 14948KT7013 | SHIM, TAPPET(2.375) | 16 |
59 | 14949KT7013 | SHIM, TAPPET(2.400) | 16 |
60 | 14950KT7013 | SHIM, TAPPET(2.425) | 16 |
61 | 14951KT7013 | SHIM, TAPPET(2.450) | 16 |
62 | 14952KT7013 | SHIM, TAPPET(2.475) | 16 |
63 | 14953KT7013 | SHIM, TAPPET(2.500) | 16 |
64 | 14954KT7013 | SHIM, TAPPET(2.525) | 16 |
65 | 14955KT7013 | SHIM, TAPPET(2.550) | 16 |
66 | 14956KT7013 | SHIM, TAPPET(2.575) | 16 |
67 | 14957KT7013 | SHIM, TAPPET(2.600) | 16 |
68 | 14958KT7013 | SHIM, TAPPET(2.625) | 16 |
69 | 14959KT7013 | SHIM, TAPPET(2.650) | 16 |
70 | 14960KT7013 | SHIM, TAPPET(2.675) | 16 |
71 | 14961KT7013 | SHIM, TAPPET(2.700) | 16 |
72 | 14962KT7013 | SHIM, TAPPET(2.725) | 16 |
73 | 14963KT7013 | SHIM, TAPPET(2.750) | 16 |
74 | 14964KT7013 | SHIM, TAPPET(2.775) | 16 |
75 | 14965KT7013 | SHIM, TAPPET(2.800) | 16 |
76 | 14966KT7013 | SHIM, TAPPET(2.825) | 16 |
77 | 14967KT7013 | SHIM, TAPPET(2.850) | 16 |
78 | 14968KT7013 | SHIM, TAPPET(2.875) | 16 |
79 | 14969KT7013 | SHIM, TAPPET(2.900) | 16 |
