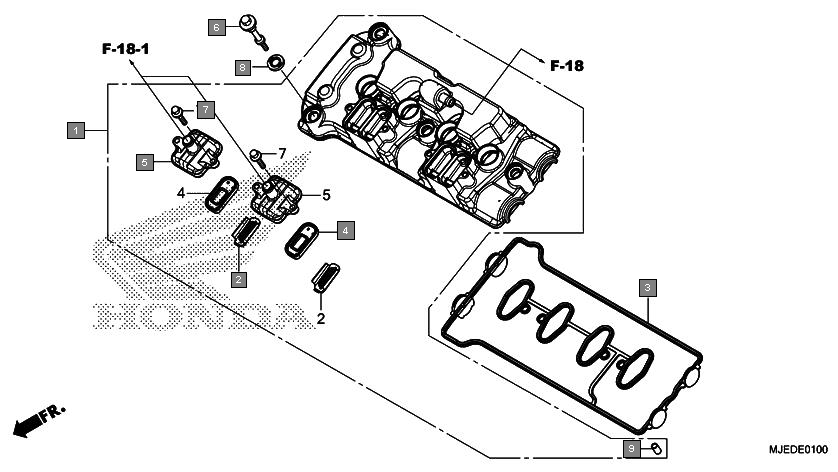

Motorcycles CBR650F CBR650FAG Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12310MJED00 COVER ASSY., CYLINDER HEAD 1
2 12341MAT750 PLATE, PORT(AI) 4
3 12391MJED00 GASKET COMP., CYLINDER HEAD COVER 1
4 18601KEA741 VALVE COMP., REED(ARAI) 4
5 18612MGZJ00 COVER, REED VALVE 2
6 90002MY5850 BOLT, HEAD COVER 4
7 90004GHB650 BOLT, FLANGE, 6X20(NSHF) 4
8 90543MV9670 RUBBER, MOUNTING 4
9 9430108140 DOWEL PIN, 8X14 4
