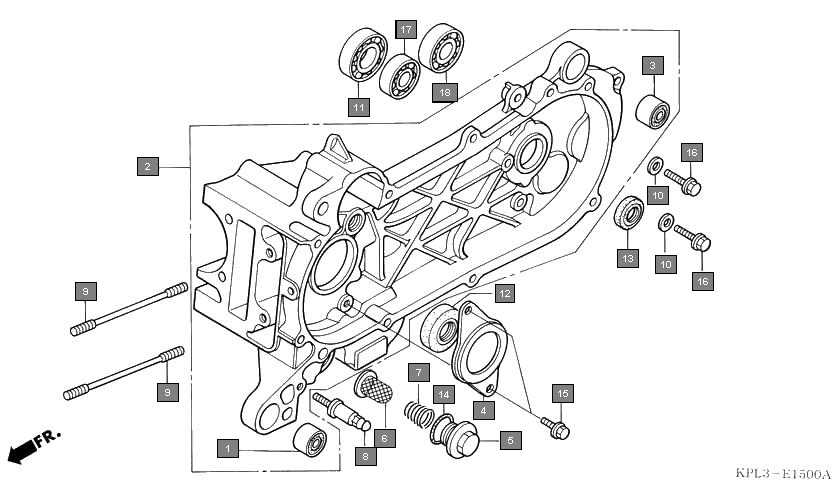

Scooters Activa SCV100CM5 Engine Left crankcase
Ref.No. Part No. Description Oty
1 11102GT8B00 BUSH, ENGINE HANGER RUBBER 1
2 11200KPL901 CRANKCASE COMP., L. 1
3 11203GC7300 BUSH, RR. CUSHION UNDER RUBBER 1
4 11204GCC000 PLATE, OIL SEAL STOPPER 1
5 12361KPL900 CAP, TAPPET ADJUSTING HOLE 1
6 15421107000 SCREEN, OIL FILTER 1
7 15426KCW880 SPRING, OIL FILTER SCREEN 1
8 90008KPL900 BOLT, MAIN STAND SPRING 1
9 90032KPL900 BOLT B, STUD, 7X186 2
10 90474333000 WASHER, SEALING, 8MM 2
11 91004GCC000 BEARING, RADIAL BALL SPECIAL, 1
12 91202KPL901 OIL SEAL, 20.8X53X9 1
13 91204KPL901 OIL SEAL, 17X30X6 1
14 91302001020 O-RING, 30.8MM 1
15 957010601600 BOLT, FLANGE, 6X16 2
16 957010801200 BOLT, FLANGE, 8X12 2
17 961006201000 BEARING, RADIAL BALL, 6201 1
18 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
19 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
20 91007KWPG31 BEARING, RADIAL BALL, 6202 (NBC) 1
21 91007KWPG32 BEARING, RADIAL BALL, 6202 (FAG) 1
22 961006202000 BEARING, RADIAL BALL, 6202 1
