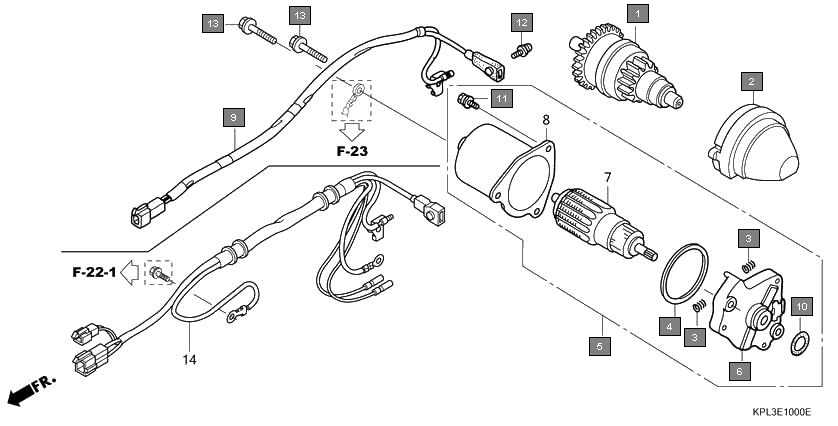

Scooters Activa SCV100CM5 Engine Starting motor(scv100cm2,5/scv1109,b)
Ref.No. Part No. Description Oty
1 28120KPL901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31204KG8004 SPRING, CARBON BRUSH 2
4 31206KPL842 PACKING 1
5 31210KPL842 MOTOR UNIT, STARTING 1
6 31213KPL842 BRACKET COMP., FR. 1
7 32105KRP981 SUB HARNESS 1
8 91309KPL842 O-RING 1
9 938920501608 SCREW-WASHER, 5X16 3
10 938920400608 SCREW-WASHER, 4X6 1
11 960010603500 BOLT, FLANGE, 6X35 2
