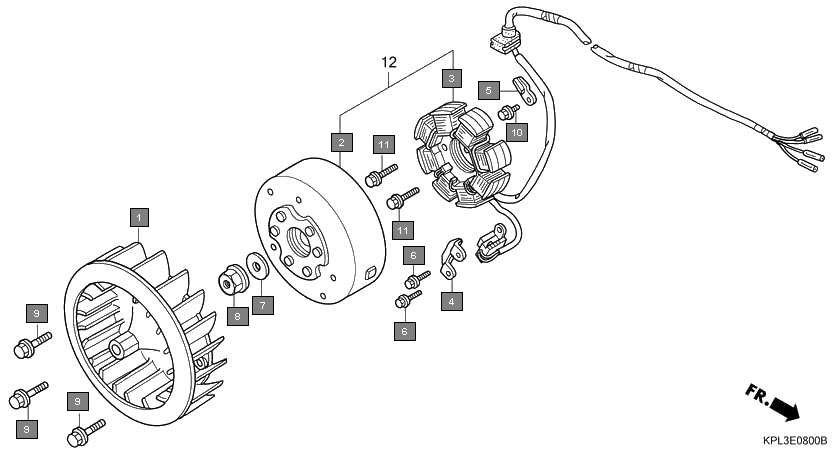

Scooters Activa SCV100CM5 Engine Generator(denso)
Ref.No. Part No. Description Oty
1 19510KPL900 FAN COMP., COOLING 1
2 31110KPL841 FLYWHEEL COMP. 1
3 31120KRP901 STATOR COMP. 1
4 32907KPL900 CLIP, GENERATOR CORD 1
5 32976107010 CLAMPER, WIRE HARNESS 1
6 90083GCC000 BOLT, KNOCK, 5MM 2
7 90410GCC000 WASHER, 10MM 1
8 9405010000 NUT, FLANGE, 10MM 1
9 957010601600 BOLT, FLANGE, 6X16 3
10 960010601600 BOLT, FLANGE, 6X16 1
11 960010602200 BOLT, FLANGE, 6X22 2
