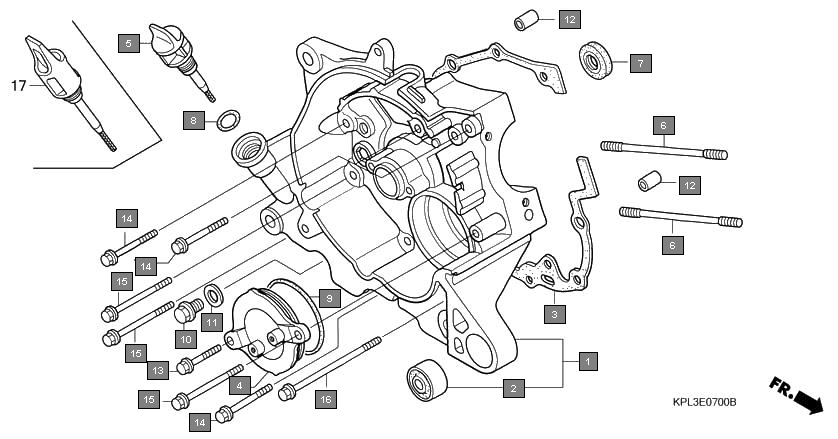

Scooters Activa SCV100CM5 Engine Right crankcase
Ref.No. Part No. Description Oty
1 11100KRP900 CRANKCASE COMP., R. 1
2 11102GT8B00 BUSH, ENGINE HANGER RUBBER 1
3 11192KRP980 GASKET, CRANKCASE 1
4 11361KPL900 COVER, OIL PUMP 1
5 15651KPL900 GAUGE, OIL LEVEL 1
6 90031KPL900 BOLT A, STUD, 7X181 2
7 91201KPL901 OIL SEAL, 16X26X7 1
8 91307035000 O-RING, 18X3 1
9 91307639000 O-RING, 64X2 1
10 9280012000 BOLT, DRAIN PLUG, 12MM 1
11 9410912000 WASHER, DRAIN PLUG, 12MM 1
12 9430108200 DOWEL PIN, 8X20 2
13 957010602200 BOLT, FLANGE, 6X22 1
14 957010605500 BOLT, FLANGE, 6X55 4
15 957010608000 BOLT, FLANGE, 6X80 3
16 957010611500 BOLT, FLANGE, 6X115 1
