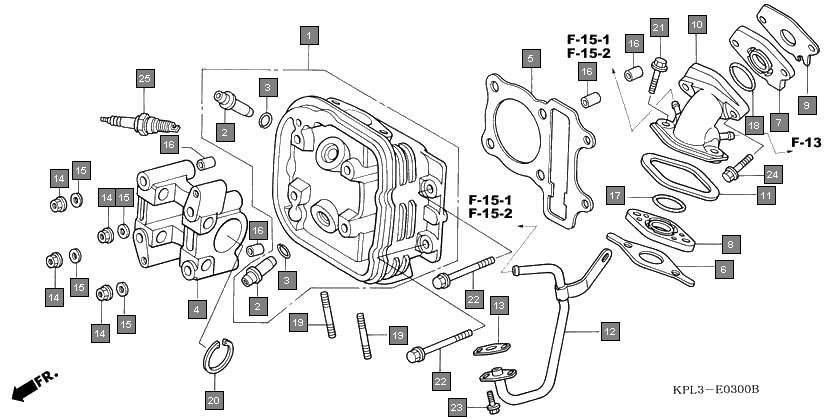

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 12200KPL901 | HEAD COMP., CYLINDER | 1 |
| 2 | 12204KPLP00 | GUIDE, VALVE(O.S.) | 2 |
| 3 | 12206KPL900 | CLIP, VALVE GUIDE | 2 |
| 4 | 12211KPL900 | HOLDER, CAMSHAFT | 1 |
| 5 | 12251KPL840 | GASKET, CYLINDER HEAD | 1 |
| 6 | 16201KRP980 | GASKET B, CARBURETOR INSULATOR | 1 |
| 7 | 16211KPL900 | INSULATOR, CARBURETOR | 1 |
| 8 | 16212KPL900 | INSULATOR B, CARBURETOR | 1 |
| 9 | 16229KPL840 | GASKET A, CARBURETOR INSULATOR | 1 |
| 10 | 17110KPL840 | PIPE COMP., INLET | 1 |
| 11 | 17113KPL900 | RUBBER, IN. PIPE SEAL | 1 |
| 12 | 18640KPL900 | PIPE COMP., AIR FEED | 1 |
| 13 | 18645KPL900 | GASKET, AIR FEED PIPE | 1 |
| 14 | 90201GCC000 | NUT, HEX., 7MM | 4 |
| 15 | 90401GCC000 | WASHER, 7.2X16X2.5 | 4 |
| 16 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 4 |
| 17 | 91304GB0910 | O-RING, 20.6X1.9 | 1 |
| 18 | 91304GB1900 | O-RING, 25X2.4 | 1 |
| 19 | 92900060160B | BOLT, STUD, 6X16 | 2 |
| 20 | 9452032000 | CIRCLIP, INTERNAL, 32MM | 1 |
| 21 | 957010602500 | BOLT, FLANGE, 6X25 | 2 |
| 22 | 957010609000 | BOLT, FLANGE, 6X90 | 2 |
| 23 | 960010601600 | BOLT, FLANGE, 6X16 | 2 |
| 24 | 960010603000 | BOLT, FLANGE, 6X30 | 2 |
| 25 | 9805656707 | PLUG, SPARK(P-RZ9HC)(CHAMPION) | 1 |
