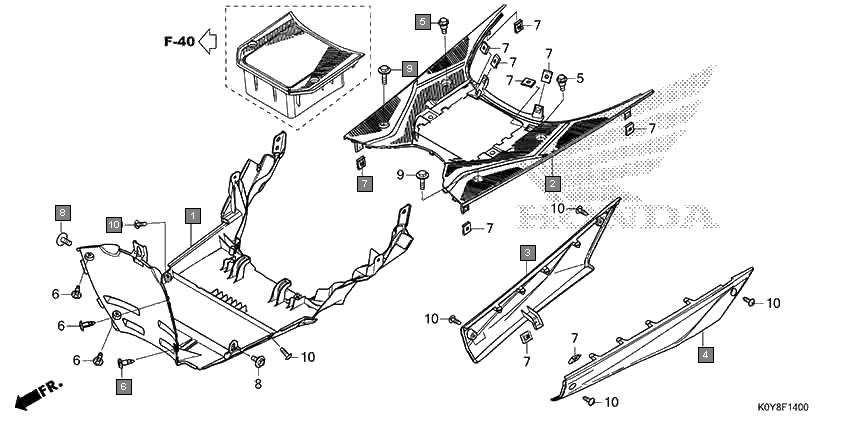

Scooters Dio SCV110FBL Frame Floor step
Ref.No. Part No. Description Oty
1 50621K0YD00 COVER, UNDER 1
2 64310K0YD00 STEP, FLOOR 1
3 64320K0YD00ZD COVER, R. FLOOR SIDE *NH1* BLACK 1
4 64330K0YD00ZD COVER, L. FLOOR SIDE *NH1* BLACK 1
5 90101K43D00 BOLT, SPECIAL, 6MM 2
6 90116SP0003 CLIP, BUMPER SEAL 4
7 90344KRP900 NUT, CLIP, 5MM 10
8 934040601607 BOLT-WASHER, 6X16 2
9 934040602507 BOLT-WASHER, 6X25 2
10 9390325380 SCREW, TAPPING, 5X16 6
