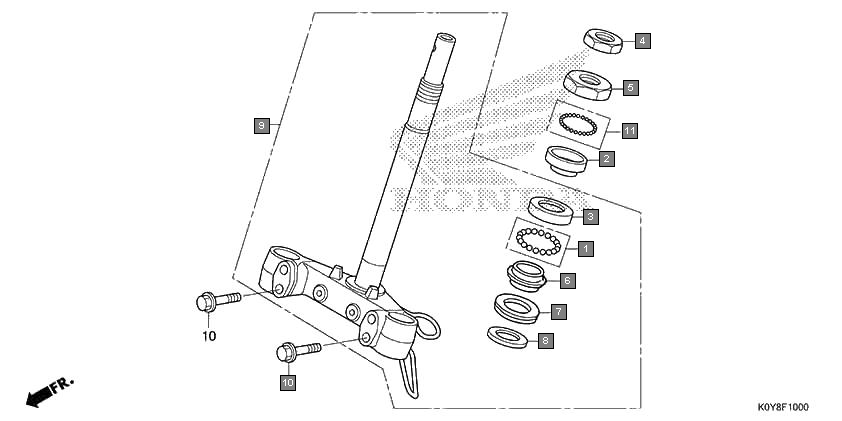

Scooters Dio SCV110FBL Frame Steering stem
Ref.No. Part No. Description Oty
1 06531KEMP00 BALL SET, STEEL, #8X19 1
2 50301KEM900 RACE, STEERING UPPER BALL 1
3 50302268010 RACE, STEERING BOTTOM BALL 1
4 50306KPL900 NUT, STEERING STEM LOCK 1
5 53211KEM900 RACE, STEERING TOP CONE 1
6 53212250010 RACE, STEERING BOTTOM CONE 1
7 53214250000 DUST SEAL, STEERING HEAD 1
8 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
9 53219K0LD20 STEM SUB ASSY., STEERING 1
10 53219K0YD00 STEM SUB ASSY., STEERING 1
11 90101KVTD00 BOLT, FLANGE, 10X42 4
12 06530KEMP00 BALL SET, STEEL, #5X26 1
