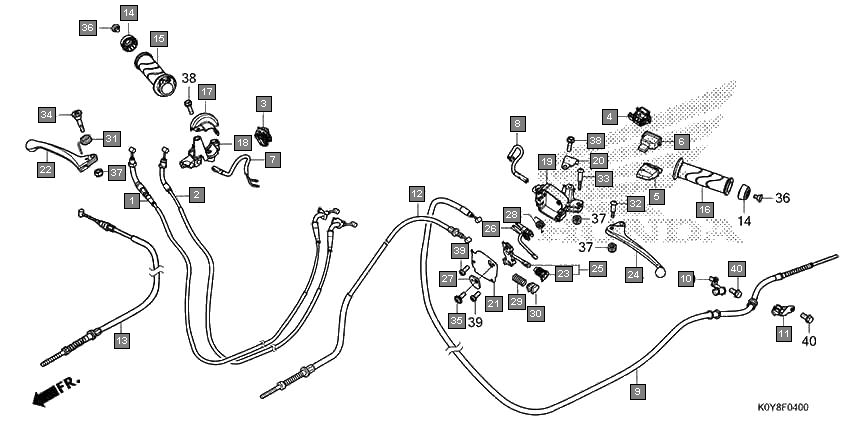

Scooters Dio SCV110FBL Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910K0YD21 CABLE COMP. A, THROTTLE 1
2 17910K0YD01 CABLE COMP. A, THROTTLE 1
3 17920K0YD01 CABLE COMP. B, THROTTLE 1
4 17920K0YD21 CABLE COMP. B, THROTTLE 1
5 35130K0LD01 SWITCH UNIT, STARTER & ENGINE STOP(MINDA) 1
6 35170K0LD01 SWITCH UNIT, DIMMER & PASSING (MINDA) 1
7 35180KWP901 SWITCH UNIT, HORN 1
8 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
9 35200KVT911 SWITCH UNIT, WINKER(JAY USHIN) 1
10 35340KWP900 SWITCH ASSY., FR. STOP 1
11 35340KWP911 SWITCH ASSY., FR. STOP 1
12 43450K0PD01 CABLE COMP., RR. BRAKE(ASK) 1
13 43450K0LD02 CABLE COMP., RR. BRAKE(SEL) 1
14 43450K0LD01 CABLE COMP., RR. BRAKE(HI-LEX) 1
15 43455K0LD00 CLAMPER A, RR. BRAKE CABLE 1
16 43456K0LD00 CLAMPER B, RR. BRAKE CABLE 1
17 45440K86D31 CABLE COMP., L. FR. BRAKE(ASK) 1
18 45440K86D32 CABLE COMP., L. FR. BRAKE(SEL) 1
19 45440K86D33 CABLE COMP., L. FR. BRAKE (HI-LEX) 1
20 45450K86D31 CABLE COMP., R. FR. BRAKE(ASK) 1
21 45450K86D33 CABLE COMP., R. FR. BRAKE (HI-LEX) 1
22 45450K86D32 CABLE COMP., R. FR. BRAKE(SEL) 1
23 53102K0LD00 COVER, HANDLE END 2
24 53140K44V00 GRIP COMP., THROTTLE 1
25 53166KWB600 GRIP, L. HANDLE 1
26 53167K0LD00 HOUSING, UPPER THROTTLE 1
27 53168K0LD00 HOUSING, UNDER THROTTLE 1
28 53172KWP910 BRACKET, L. BRAKE LEVER 1
29 53173K24G00 BAND, HANDLE BRACKET 1
30 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
31 53175KWPD00 LEVER, R. STEERING HANDLE 1
32 53176GBL870 BOOT, BRAKE LEVER ROD 1
33 53178KWPD00 LEVER, L. STEERING HANDLE 1
34 53180KWP910 EQUALIZER COMP. 1
35 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
36 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
37 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
38 53188K24900 SPRING, DELAY 1
39 53189K24900 STOPPER, EQUALIZER 1
40 53199KZN910 SPRING, BRAKE LEVER RETURN 1
41 90115KPL900 SCREW, HANDLE LEVER PIVOT 1
42 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
43 90115KZN910 SCREW, HANDLE LEVER PIVOT 1
44 90118KWP910 SCREW, PAN, 5X13 1
45 90164K66V00 SCREW, SPECIAL, 6MM 2
46 90304KPL900 NUT, HEX., 5MM 3
47 934010602000 BOLT-WASHER, 6X20 2
48 93500050121H SCREW, PAN, 5X12 2
49 960010601200 BOLT, FLANGE, 6X12 2
