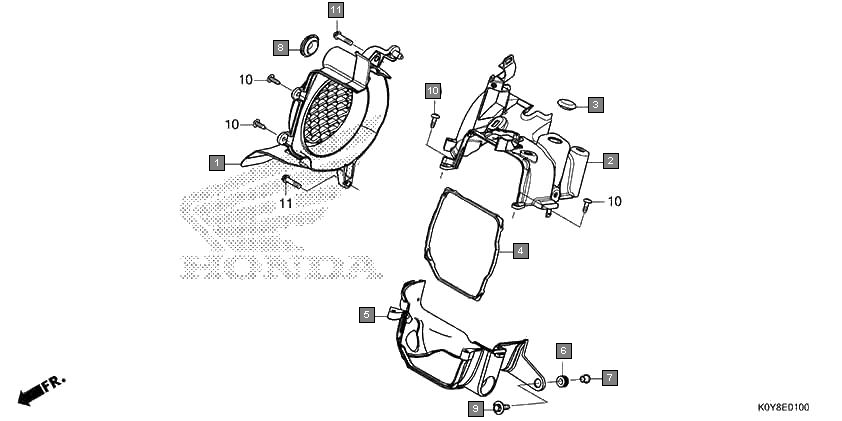

Scooters Dio SCV110FBL Engine Shroud/fan cover
Ref.No. Part No. Description Oty
1 19610K0LD00 COVER COMP., FAN 1
2 19621K0PD00 SHROUD, IN. 1
3 19623K0PD00 GROMMET, TENSIONER HOLE 1
4 19625K0JN00 SEAL, SHROUD 1
5 19631K0LD00 SHROUD, EX. 1
6 19639GBC000 RUBBER, MOUNTING 1
7 33715GB0900 COLLAR, TAILLIGHT SETTING 1
8 82871KTP900 GROMMET, DRAIN HOLE 1
9 934040602000 BOLT-WASHER, 6X20 1
10 9390325380 SCREW, TAPPING, 5X16 4
11 960010602507 BOLT, FLANGE, 6X25 2
