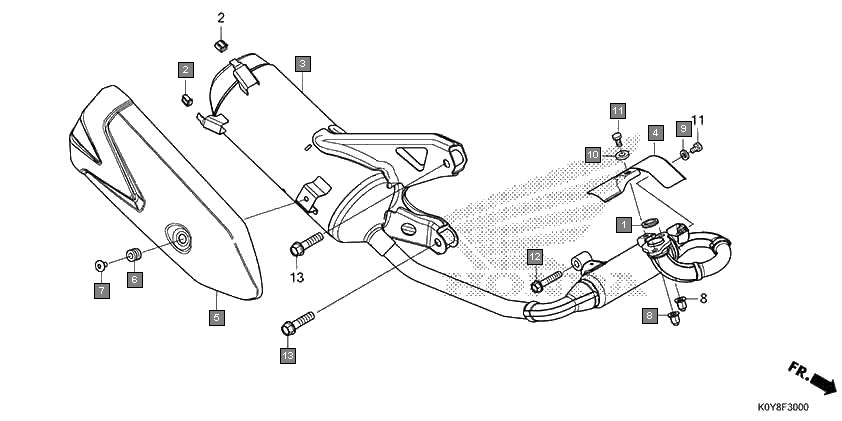

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18292GY1610 | GASKET, EX. PIPE | 1 |
2 | 18293MCAA20 | RUBBER, PROTECTOR PACKING | 2 |
3 | 18300K0YD00 | MUFFLER COMP., EX. | 1 |
4 | 18301K0LD00 | GUARD, HEAT | 1 |
5 | 18318K0YD00 | PROTECTOR, MUFFLER | 1 |
6 | 18345KWPH00 | RUBBER, PROTECTOR MOUNTING | 1 |
7 | 90113KYJ710 | SCREW, PAN, 6X12 | 1 |
8 | 90304MJ0920 | NUT, CAP, 7MM | 2 |
9 | 90501K0LD00 | WASHER, PLAIN, 6X13 | 1 |
10 | 90502K0LD00 | WASHER, PLAIN, 6X18 | 1 |
11 | 93301060100B | BOLT, HEX., 6X10 | 2 |
12 | 957010804007 | BOLT, FLANGE, 8X40 | 1 |
13 | 958011004007 | BOLT, FLANGE, 10X40 | 2 |
