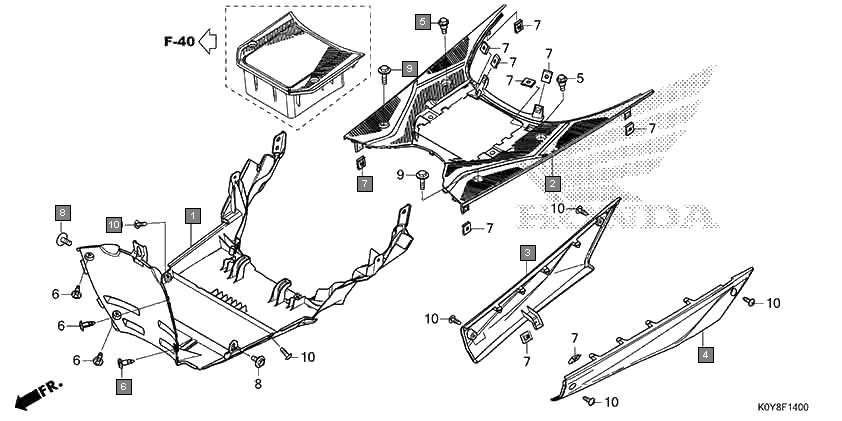

Scooters Dio SCV110FL Frame Floor step
Ref.No. Part No. Description Oty
1 50621K0YD00 COVER, UNDER 1
2 64310K0YD00 STEP, FLOOR 1
3 64320K0YD00ZG COVER, R. FLOOR SIDE *B230R* LOMOND BLUE R 1
4 64320K0YD00ZB COVER, R. FLOOR SIDE *YR350R* TITONIA ORANGE R 1
5 64320K0YD00ZE COVER, R. FLOOR SIDE *NHB69R* ORCUS GRAY R 1
6 64320K0YD00ZC COVER, R. FLOOR SIDE *R232* PATRIOT RED 1
7 64330K0YD00ZC COVER, L. FLOOR SIDE *R232* PATRIOT RED 1
8 64330K0YD00ZE COVER, L. FLOOR SIDE *NHB69R* ORCUS GRAY R 1
9 64330K0YD00ZG COVER, L. FLOOR SIDE *B230R* LOMOND BLUE R 1
10 64330K0YD00ZB COVER, L. FLOOR SIDE *YR350R* TITONIA ORANGE R 1
11 90101K43D00 BOLT, SPECIAL, 6MM 2
12 90116SP0003 CLIP, BUMPER SEAL 4
13 90344KRP900 NUT, CLIP, 5MM 10
14 934040601607 BOLT-WASHER, 6X16 2
15 934040602507 BOLT-WASHER, 6X25 2
16 9390325380 SCREW, TAPPING, 5X16 6
