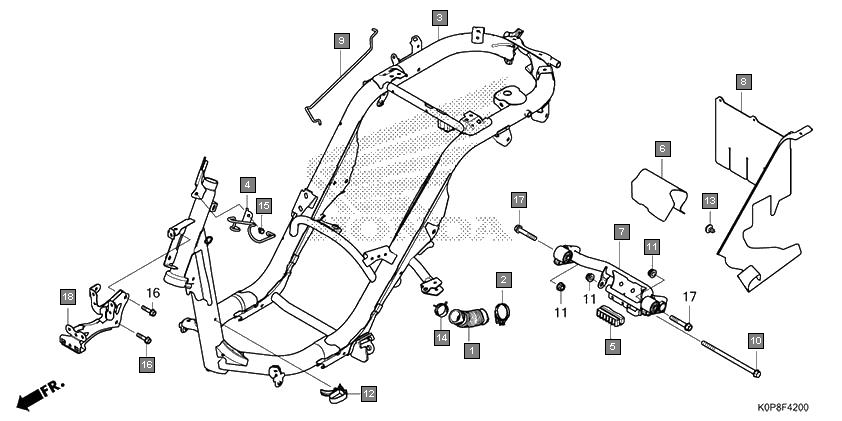

Scooters Activa SCV110LI Frame Frame body
Ref.No. Part No. Description Oty
1 11345K0LD00 DUCT, L. COVER 1
2 11346K0LD00 BAND, AIR CLEANER CONNECTING TUBE(40) 1
3 50100K0PD00 BODY COMP., FRAME 1
4 50127K0PD00 GUIDE COMP., CABLE 1
5 50352K0LD00 RUBBER, LINK STOPPER 1
6 50354K0LD00 GUARD, ENGINE HANGER LINK 1
7 50355K0LD00 LINK SUB ASSY., ENGINE HANGER 1
8 80102K0LD00 PLATE, FRAME BODY SPLASH GUARD 1
9 81256K0LD00 ROD, BODY OPENER 1
10 90105K0LD00 BOLT, FLANGE, 10X185 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 3
12 90651K0LD01 CLAMPER, THROTTLE CABLE 1
13 90652K0LD01 CLIP, SPLASH GUARD 7
14 91405KPL900 CLAMP, TUBE(D29) 1
15 957020601200 BOLT, FLANGE, 6X12 1
16 957010601200 BOLT, FLANGE, 6X12 1
17 957020803208 BOLT, FLANGE, 8X32 2
18 957010803208 BOLT, FLANGE, 8X32 2
19 958011005508 BOLT, FLANGE, 10X55 2
20 50330K0PD00 STAY COMP., FR. COVER 1
