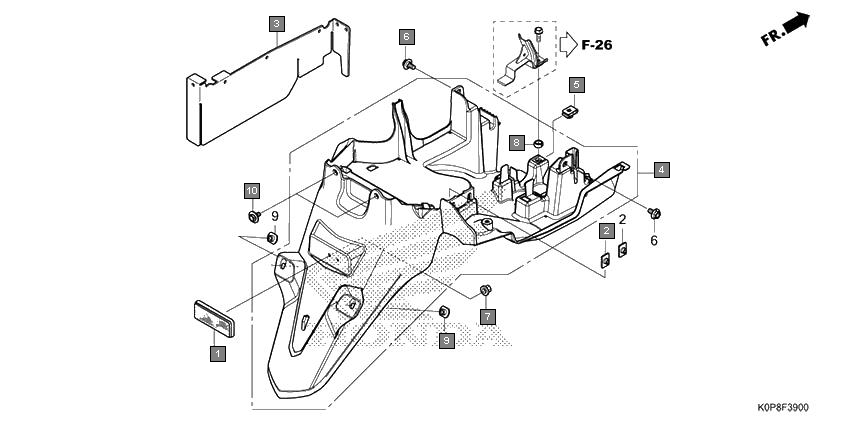

Scooters Activa SCV110LI Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 61304MGSD70 NUT, SPECIAL, 5MM 2
3 80104K0LD00 PLATE, RR. FENDER SPLASH GUARD 1
4 80105K0PD00 FENDER COMP., RR. 1
5 90653K0LD00 NUT, CLIP, 6MM 1
6 90111KWP900 BOLT, INNER COVER 2
7 90301KWN901 NUT, U, 5MM 1
8 90311K0LD00 COLLAR, 6MM 1
9 90311KTE910 NUT, RR. FENDER 2
10 934040601208 BOLT-WASHER, 6X12 2
