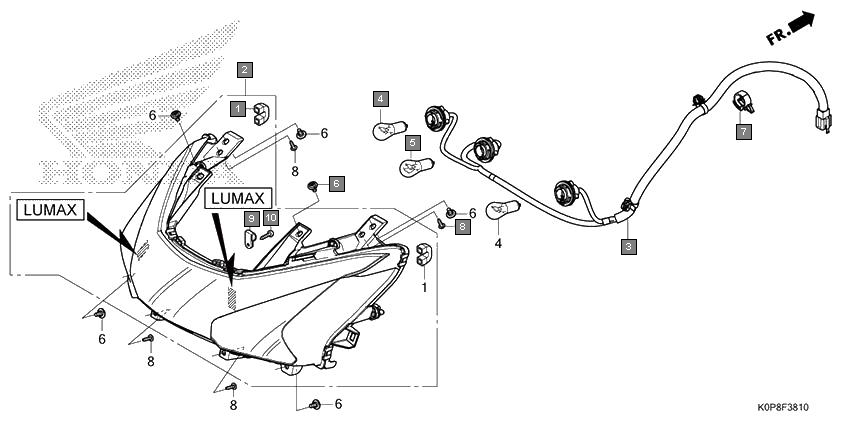

Scooters Activa SCV110LI Frame Rear combination light(lumax)
Ref.No. Part No. Description Oty
1 33706K43901 TUBE 2
2 33710K0P601 LIGHT UNIT, RR. COMBINATION (LUMAX) 1
3 33715K0P601 SOCKET COMP.(LUMAX) 1
4 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
5 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
6 91509GE2760 SCREW, PAN, 5X11.5 6
7 91558K0LD01 CLIP, WIRE HARNESS 1
8 9390334480 SCREW, TAPPING, 4X16 4
9 32920KWPF02 CLIP A, HARNESS 1
10 9390134410 SCREW, TAPPING, 4X16 1
