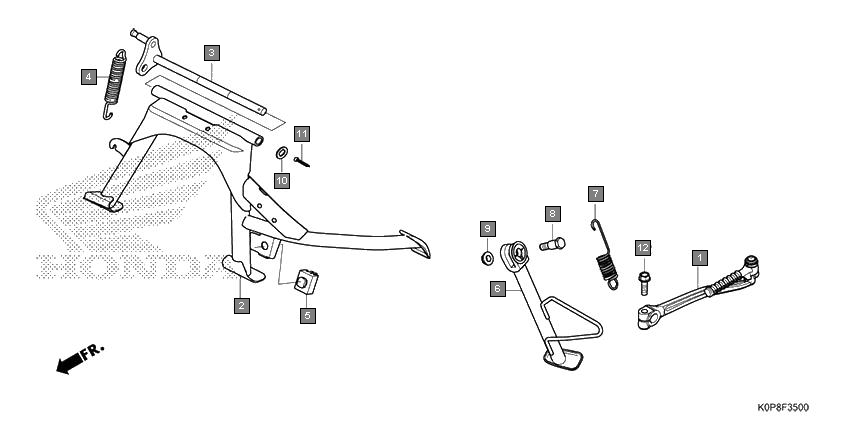

Scooters Activa SCV110LI Frame Kick starter arm/stand
Ref.No. Part No. Description Oty
1 28300K0PD00 ARM ASSY., KICK STARTER 1
2 50500K0PD00 STAND COMP., MAIN 1
3 50503K0LD00 SHAFT, MAIN STAND 1
4 50504K0LD00 SPRING, MAIN STAND 1
5 50505GR1000 RUBBER, STAND STOPPER 1
6 50530K0PD00 BAR COMP., SIDE STAND 1
7 50541K0LD00 SPRING, SIDE STAND 1
8 90109KPL900 BOLT, SIDE STAND PIVOT 1
9 90304K0LD10 NUT, SIDE STAND 1
10 9410210000 WASHER, PLAIN, 10MM 1
11 9420125180 PIN, SPLIT, 2.5X18 1
12 957010802507 BOLT, FLANGE, 8X25 1
