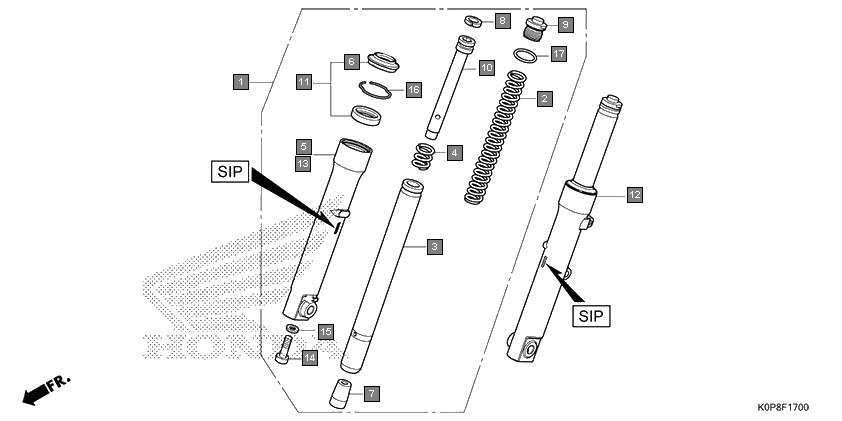

Scooters Activa SCV110LI Frame Front fork(showa)
Ref.No. Part No. Description Oty
1 51400K0LD21 FORK ASSY., R. FR.(SHOWA) 1
2 51401KVT911 SPRING, FR. FORK 2
3 51410K24911 PIPE COMP., FR. FORK 2
4 51412KSP901 SPRING, REBOUND 2
5 51420K0LD21 CASE, R. FR. BOTTOM(SHOWA) 1
6 51425961013 DUST SEAL(SHOWA) 2
7 51432KFN851 PIECE, OIL LOCK 2
8 51437KVN901 RING, PISTON 2
9 51454K24911 BOLT, FR. FORK 2
10 51470KVT911 PIPE, SEAT 2
11 51490KWS901 SEAL SET, FR. FORK 2
12 51500K0LD01 FORK ASSY., L. FR.(SHOWA) 1
13 51520K0LD01 CASE, L. FR. BOTTOM(SHOWA) 1
14 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
15 90544439930 PACKING(SHOWA) 2
16 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
17 91356KAG901 O-RING(SHOWA) 2
