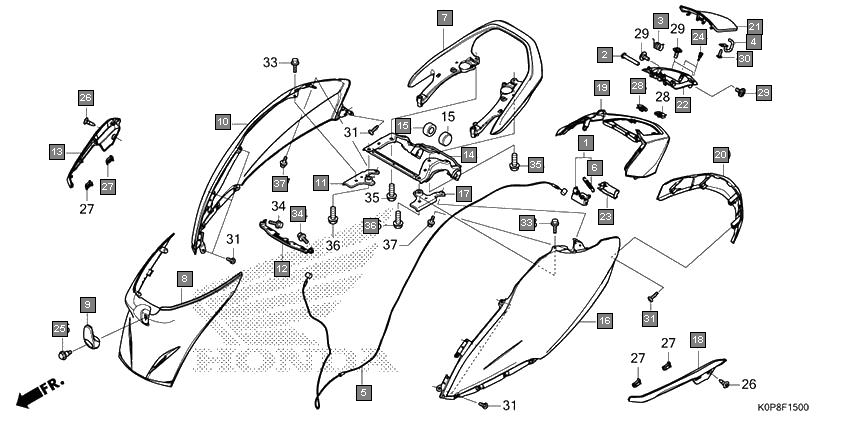

Scooters Activa SCV110LI Frame Body cover
Ref.No. Part No. Description Oty
1 16530K0LD00 CATCH COMP., FUEL LID 1
2 17507K0LD00 PIN, FUEL LID 1
3 64451K0PD00 SPRING, FUEL LID OPENER 1
4 64452K0LD00 BAR, FUEL LID LOCK 1
5 64455K0LD02 CABLE COMP., FUEL LID(HI-LEX) 1
6 64455K0L602 CABLE COMP., FUEL LID(SEL) 1
7 77234GN2000 SPRING, SEAT LOCK 1
8 77300K0PD00ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
9 80151K0PD00ZA COVER, CENTER *NH1* BLACK 1
10 81132KWPH00ZA HOOK, LUGGAGE 1
11 83500K0PP00ZZ COVER COMP., R. BODY 1
12 83504K0PD00 MEMBER COMP., R. BODY COVER 1
13 83510K0LP00ZZ STAY, FR. BODY COVER 1
14 83520K0PD00ZA MOUL, R. BODY COVER *NH1* BLACK 1
15 83560K0PD00 HINGE, BODY COVER 1
16 83561KPL840 CUSHION, BODY COVER 2
17 83600K0PP00ZZ COVER COMP., L. BODY 1
18 83604K0PD00 MEMBER COMP., L. BODY COVER 1
19 83620K0PD00ZA MOUL, L. BODY COVER *NH1* BLACK 1
20 83750K0PD00ZP COVER, RR. CENTER UPPER *NHC41P* PEARL PRECIOUS WHITE 1
21 83750K0PD00ZC COVER, RR. CENTER UPPER *NH303M* MAT AXIS GRAY METALLIC 1
22 83750K0PD00ZQ COVER, RR. CENTER UPPER *B236M* DECENT BLUE METALLIC 1
23 83750K0PD00ZD COVER, RR. CENTER UPPER *NH1* BLACK 1
24 83750K0PD00ZU COVER, RR. CENTER UPPER *R392P* PEARL SPARTAN RED 2 1
25 83750K0PD00ZS COVER, RR. CENTER UPPER *Y236M* DAZZLE YELLOW METALLIC 2 1
26 83751K0PD00ZC COVER, RR. CENTER LOWER *NH303M* MAT AXIS GRAY METALLIC 1
27 83751K0PD00ZU COVER, RR. CENTER LOWER *R392P* PEARL SPARTAN RED 2 1
28 83751K0PD00ZS COVER, RR. CENTER LOWER *Y236M* DAZZLE YELLOW METALLIC 2 1
29 83751K0PD00ZD COVER, RR. CENTER LOWER *NH1* BLACK 1
30 83751K0PD00ZP COVER, RR. CENTER LOWER *NHC41P* PEARL PRECIOUS WHITE 1
31 83751K0PD00ZQ COVER, RR. CENTER LOWER *B236M* DECENT BLUE METALLIC 1
32 83801K0PD00ZQ LID, FUEL *B236M* DECENT BLUE METALLIC 1
33 83801K0PD00ZC LID, FUEL *NH303M* MAT AXIS GRAY METALLIC 1
34 83801K0PD00ZS LID, FUEL *Y236M* DAZZLE YELLOW METALLIC 2 1
35 83801K0PD00ZD LID, FUEL *NH1* BLACK 1
36 83801K0PD00ZU LID, FUEL *R392P* PEARL SPARTAN RED 2 1
37 83801K0PD00ZP LID, FUEL *NHC41P* PEARL PRECIOUS WHITE 1
38 83802K0PD00 BASE, FUEL LID 1
39 83803K0PD00 COVER, FUEL LID CATCH 1
40 90101K0LD00 RUBBER, SETTING 2
41 90109K0PD00 BOLT, SPECIAL, 6MM 1
42 90116SP0003 CLIP, BUMPER SEAL 2
43 90651K14A31 CLIP, SLIDE 4
44 90654K0LD00 NUT, CLIP, 5MM 2
45 91509GE2760 SCREW, PAN, 5X11.5 4
46 9390324310 SCREW, TAPPING, 4X12 1
47 9390334480 SCREW, TAPPING, 4X16 8
48 957020601200 BOLT, FLANGE, 6X12 2
49 957010601200 BOLT, FLANGE, 6X12 2
50 957020601208 BOLT, FLANGE, 6X12 2
51 957010601208 BOLT, FLANGE, 6X12 2
52 957020802208 BOLT, FLANGE, 8X22 2
53 957010802208 BOLT, FLANGE, 8X22 2
54 957020803208 BOLT, FLANGE, 8X32 2
55 957010803208 BOLT, FLANGE, 8X32 2
56 960010601000 BOLT, FLANGE, 6X10 2
