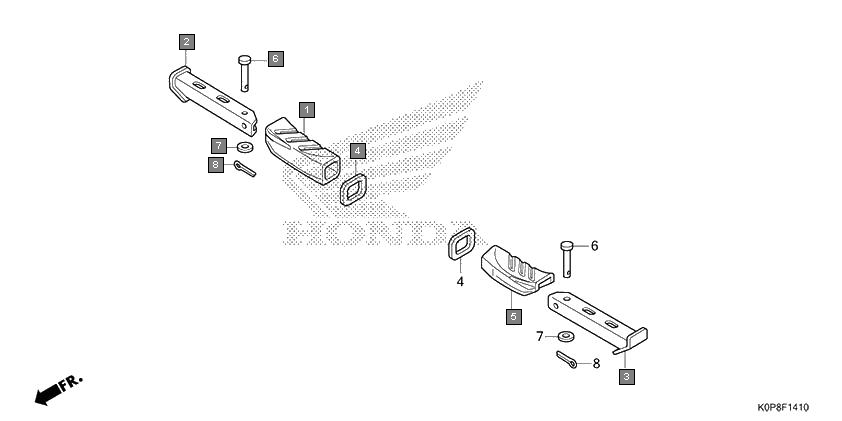

Scooters Activa SCV110LI Frame Pillion step
Ref.No. Part No. Description Oty
1 50710KWPE00 RUBBER, R. PILLION STEP 1
2 50711KWP900 BAR, R. PILLION STEP 1
3 50712KWP900 BAR, L. PILLION STEP 1
4 50713KWP900 WASHER, PILLION STEP 2
5 50720KWPE00 RUBBER, L. PILLION STEP 1
6 90131KWPF00 PIN, PILLION STEP 2
7 9410106000 WASHER, PLAIN, 6MM 2
8 9420116150 PIN, SPLIT, 1.6X15 2
