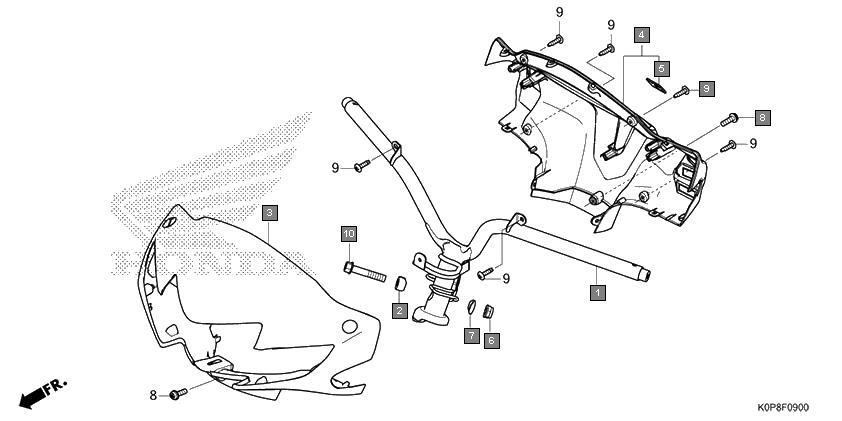

Scooters Activa SCV110LI Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100K0PD00 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53205K0PD00ZS COVER, HANDLE FR. *Y236M* DAZZLE YELLOW METALLIC 2 1
4 53205K0PD00ZU COVER, HANDLE FR.*R392P* PEARL SPARTAN RED 2 1
5 53205K0PD00ZD COVER, HANDLE FR. *NH1* BLACK 1
6 53205K0PD00ZP COVER, HANDLE FR. *NHC41P* PEARL PRECIOUS WHITE 1
7 53205K0PD00ZQ COVER, HANDLE FR. *B236M* DECENT BLUE METALLIC 1
8 53205K0PD00ZC COVER, HANDLE FR. *NH303M* MAT AXIS GRAY METALLIC 1
9 53250K0PD00ZA COVER COMP., HANDLE RR. *NH1* BLACK 1
10 86150KWS601 EMBLEM, PRODUCT(SJS) 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
12 90502KWP900 COLLAR B, HANDLE SETTING 1
13 938910501607 SCREW-WASHER, 5X16 2
14 9390334480 SCREW, TAPPING, 4X16 6
15 958011005508 BOLT, FLANGE, 10X55 1
