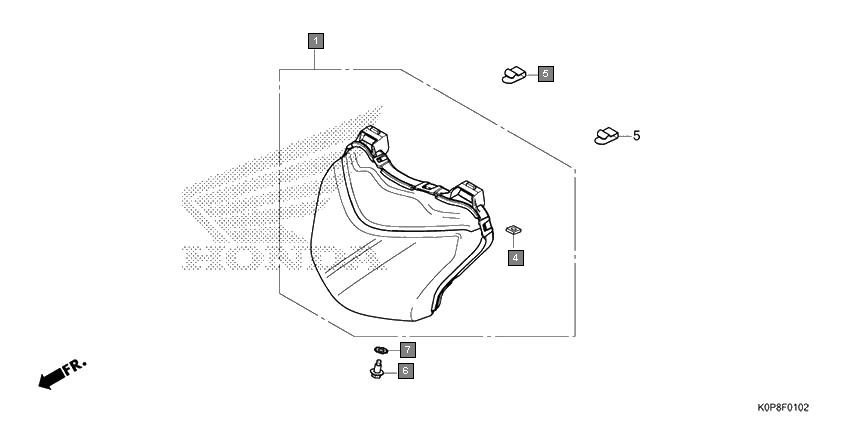

Scooters Activa SCV110LI Frame Headlight(scv110-2id)
Ref.No. Part No. Description Oty
1 33100K0P611 HEADLIGHT ASSY.(LUMAX) 1
2 33100K0PD11 HEADLIGHT ASSY.(FIEM) 1
3 33128GBL003 NUT, SPECIAL 1
4 33128K0PD01 NUT, SPECIAL, 4X0.7 1
5 53209GAH000 CLIP, HEADLIGHT 2
6 90103KVH900 BOLT, ADJUSTER 1
7 90307GW3980 WASHER, LOCK, 6MM 1
