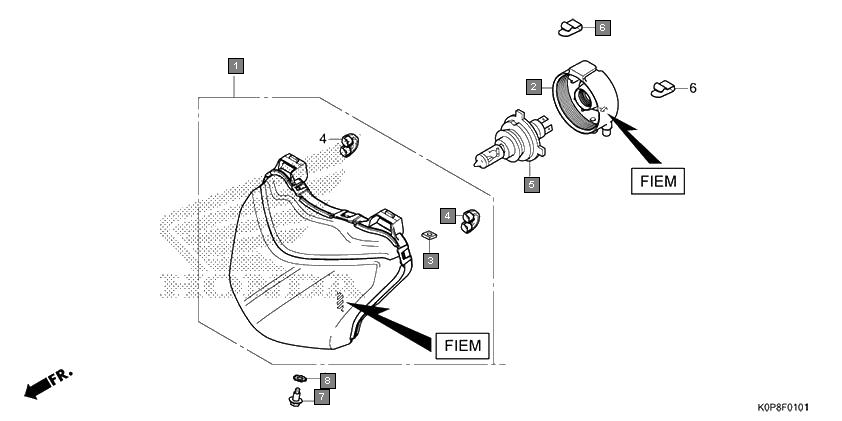

Scooters Activa SCV110LI Frame Headlight(scv110-id)(fiem)
Ref.No. Part No. Description Oty
1 33110K0PD01 HEADLIGHT UNIT(FIEM) 1
2 33112KWS901 COVER, RUBBER 1
3 33128K0PD01 NUT, SPECIAL, 4X0.7 1
4 33706KWS901 TUBE 2
5 34901KTED01 BULB, HEADLIGHT(12V 35/35W) (OSRAM) 1
6 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90103KVH900 BOLT, ADJUSTER 1
9 90307GW3980 WASHER, LOCK, 6MM 1
