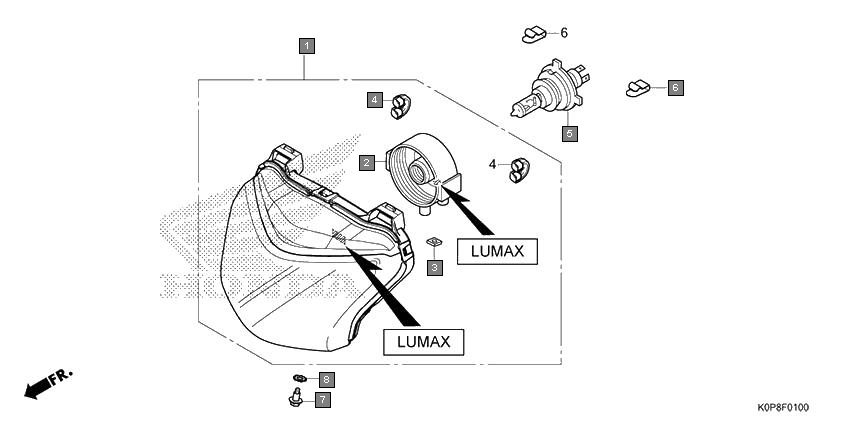

Scooters Activa SCV110LI Frame Headlight(scv110-id)(lumax)
Ref.No. Part No. Description Oty
1 33110K0P601 HEADLIGHT UNIT(LUMAX) 1
2 33126KWPF01 COVER, RUBBER(LUMAX) 1
3 33128GBL003 NUT, SPECIAL 1
4 33706K43901 TUBE 2
5 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
6 34901KTED01 BULB, HEADLIGHT(12V 35/35W) (OSRAM) 1
7 53209GAH000 CLIP, HEADLIGHT 2
8 90103KVH900 BOLT, ADJUSTER 1
9 90307GW3980 WASHER, LOCK, 6MM 1
