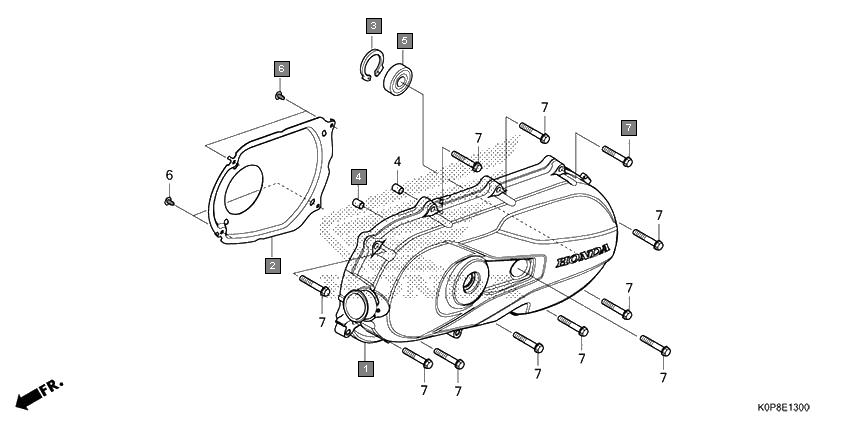

Scooters Activa SCV110LI Engine Left side cover
Ref.No. Part No. Description Oty
1 11341K0LD00 COVER, L. SIDE 1
2 11342K0LD00 PLATE, L. COVER 1
3 90601K0LD00 CIRCLIP.IN 32MM 1
4 90703K0LD00 DOWEL PIN, 8X10 2
5 91005KVBN50 BEARING COMP.(6002UU)(SKF) 1
6 91005K0LD00 BEARING COMP.(6002UU) 1
7 9390334120 SCREW, TAPPING, 4X8 4
8 960010603500 BOLT, FLANGE, 6X35 11
