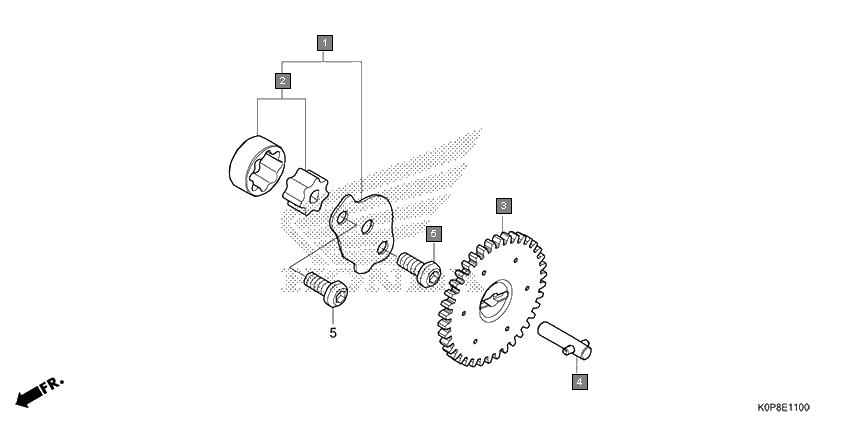

Scooters Activa SCV110LI Engine Oil pump
Ref.No. Part No. Description Oty
1 15010K0LD00 PUMP SET, OIL 1
2 15021K0LD00 ROTOR SET, OIL PUMP 1
3 15133K0JN00 GEAR, OIL PUMP DRIVEN(38T) 1
4 15135K0LD00 SHAFT COMP., OIL PUMP 1
5 90004K0JN00 BOLT, SPECIAL, 6X14 2
