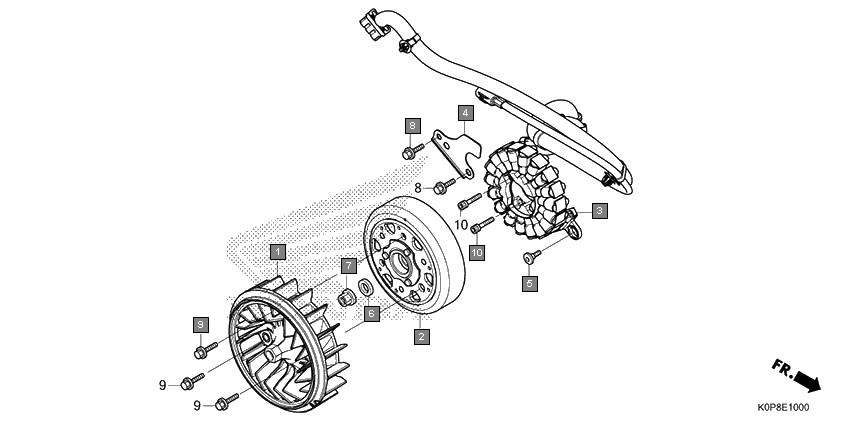

Scooters Activa SCV110LI Engine A.c.g. starter
Ref.No. Part No. Description Oty
1 19510K0LD00 FAN COMP., COOLING 1
2 31210K0PD01 FLYWHEEL COMP. 1
3 31220K0PD01 STATOR COMP. 1
4 32961K0LD00 CLAMPER, A.C. GENERATOR CORD 1
5 90001KWR000 BOLT, SOCKET, 6X18 1
6 90439K0LD00 WASHER, 12X24X2.3 1
7 9405012000 NUT, FLANGE, 12MM 1
8 957010601400 BOLT, FLANGE, 6X14 2
9 957010601600 BOLT, FLANGE, 6X16 3
10 967000602000 BOLT, SOCKET, 6X20 3
