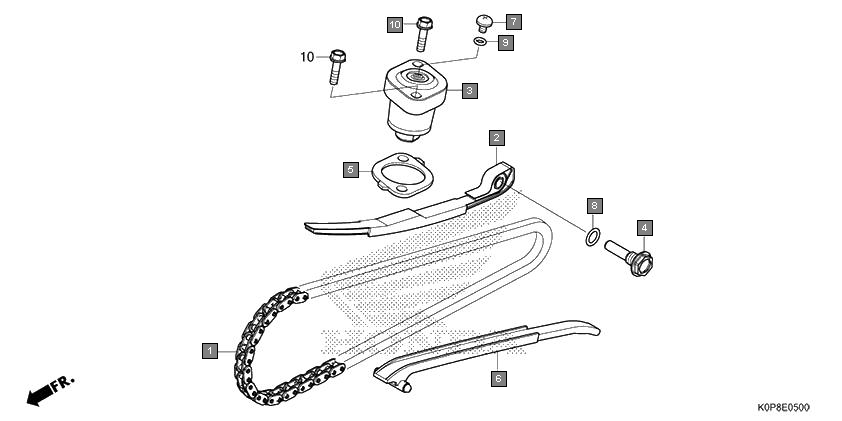

Scooters Activa SCV110LI Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14401K0PD01 CHAIN, CAM(90L)(LGB) 1
2 14401K0PD02 CHAIN, CAM(90L)(TIDC) 1
3 14510K0LD00 TENSIONER, CAM CHAIN 1
4 14520KZKD21 LIFTER ASSY., TENSIONER(ADVIK) 1
5 14531K0JN00 PIVOT, CAM CHAIN TENSIONER 1
6 14560GGZJ01 GASKET, TENSIONER LIFTER 1
7 14611K0LD00 GUIDE, CAM CHAIN 1
8 90005KY7000 SCREW, PAN, 6X6 1
9 91301K0JN00 O-RING, 6.8X2.0 1
10 91306KRM840 O-RING, 1.5X9.5 1
11 957010602200 BOLT, FLANGE, 6X22 2
