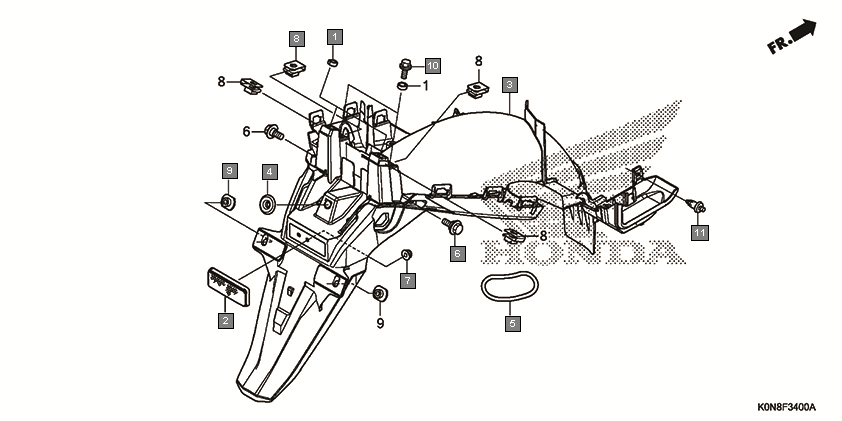

Motorcycles SP125 CBF125ML Frame Rear fender
Ref.No. Part No. Description Oty
1 17223KVX600 COLLAR, AIR CLEANER 4
2 33741KPL902 REFLECTOR, REFLEX 1
3 80101K0ND00 FENDER, RR. 1
4 83551376000 GROMMET, SIDE COVER 1
5 89012KZL930 BAND, TOOL 1
6 90111162000 BOLT, FLANGE, 6MM 2
7 90301KWN901 NUT, U, 5MM 1
8 90311KSH900 NUT, CLIP, 6MM 4
9 90311KTE910 NUT, RR. FENDER 2
10 957010601608 BOLT, FLANGE, 6X16 2
11 90116SP0003 CLIP, BUMPER SEAL 1
