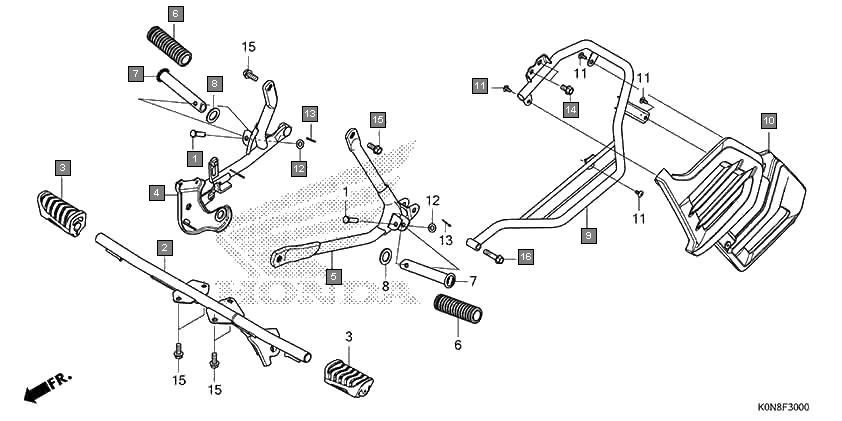

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 50603K0ND00 | PIN, PILLION STEP BAR JOINT | 2 |
| 2 | 50610K0ND20 | BAR COMP., STEP | 1 |
| 3 | 50661K0ND00 | RUBBER, MAIN STEP | 2 |
| 4 | 50701K0ND00 | BRACKET COMP., R. PILLION STEP | 1 |
| 5 | 50701K0ND10 | BRACKET COMP., R. PILLION STEP | 1 |
| 6 | 50702K0ND00 | BRACKET COMP., L. PILLION STEP | 1 |
| 7 | 50710KTE910 | RUBBER, PILLION STEP | 2 |
| 8 | 50715K0ND00 | BAR, PILLION STEP | 2 |
| 9 | 50715KFK630 | PLATE, PILLION STEP SIDE | 2 |
| 10 | 51103K0ND00 | GUARD A, SARI | 1 |
| 11 | 51104K0ND00 | GUARD B, SARI | 1 |
| 12 | 9390325280 | SCREW, TAPPING, 5X12 | 4 |
| 13 | 9410208800 | WASHER, PLAIN, 8MM | 2 |
| 14 | 9420120151 | PIN, SPLIT, 2.0 | 2 |
| 15 | 957010801407 | BOLT, FLANGE, 8X14 | 2 |
| 16 | 957010802008 | BOLT, FLANGE, 8X20 | 6 |
| 17 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
