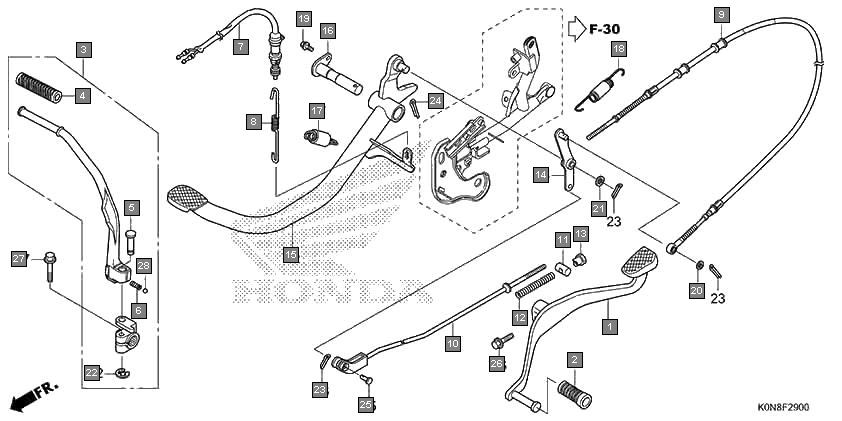

Motorcycles SP125 CBF125ML Frame Pedal(drum brake)
Ref.No. Part No. Description Oty
1 24701K0ND00 PEDAL, GEAR CHANGE 1
2 24781KSP860 RUBBER, CHANGE PEDAL 1
3 28300K0ND00 ARM ASSY., KICK STARTER 1
4 28311KWS900 RUBBER, KICK STARTER 1
5 28321KTE910 PIN, KICK STARTER 1
6 28333KANT40 SPRING, KICK STARTER STOPPER 1
7 35350K0ND01 SWITCH ASSY., RR. STOP 1
8 35357K0ND00 SPRING, STOP SWITCH 1
9 43450K0ND11 CABLE COMP., BRAKE(CBS) (HI-LEX) 1
10 43451K0ND10 ROD COMP., RR. BRAKE 1
11 43455KSP900 JOINT, BRAKE ARM 1
12 43456KSP900 SPRING, BRAKE ROD 1
13 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
14 43580K0ND10 EQUALIZER COMP. 1
15 46500K0ND10 PEDAL COMP., BRAKE 1
16 46513K0ND00 SHAFT COMP., BRAKE PEDAL PIVOT 1
17 46514KTEDB0 SPRING SET, BRAKE PEDAL 1
18 46613K0ND10 SPRING SET, DELAY 1
19 90104MEA740 BOLT, FLANGE,(DR)6X12 1
20 90502KRY930 WASHER, BRAKE ROD 1
21 90552K0ND00 WASHER, PLAIN, 10MM 1
22 90601473003 E-RING, 8MM 1
23 9420120150 PIN, SPLIT, 2.0X15 3
24 9420130300 PIN, SPLIT, 3.0X30 1
25 9501553000 PIN C, JOINT 1
26 957010602008 BOLT, FLANGE, 6X20 1
27 957010802508 BOLT, FLANGE, 8X25 1
28 9621108000 BALL, STEEL, #8(1/4) 1
