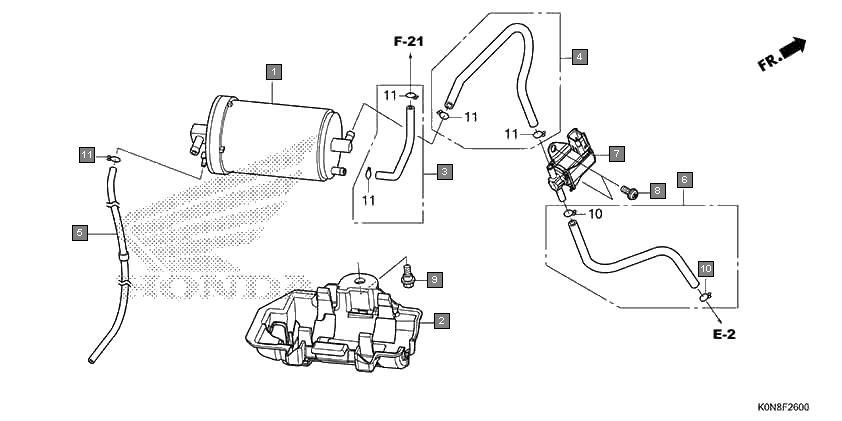

Motorcycles SP125 CBF125ML Frame Canister
Ref.No. Part No. Description Oty
1 17310K0ND01 CANISTER COMP. 1
2 17411K0ND00 CASE, CANISTER 1
3 17412K0ND00 TUBE, CHARGE 1
4 17413K0ND00 TUBE ASSY. A, PURGE 1
5 17414K0ND00 TUBE COMP., DRAIN 1
6 17415K0ND00 TUBE ASSY. B, PURGE 1
7 36162K0ND01 VALVE, PURGE CONTROL SOLENOID 1
8 90101K0ND00 SCREW-WASHER, 5X12 2
9 90111162000 BOLT, FLANGE, 6MM 1
10 90651KWPF00 CLIP, TUBE(B7) 2
11 90652KWPF00 CLIP, TUBE(B8) 5
