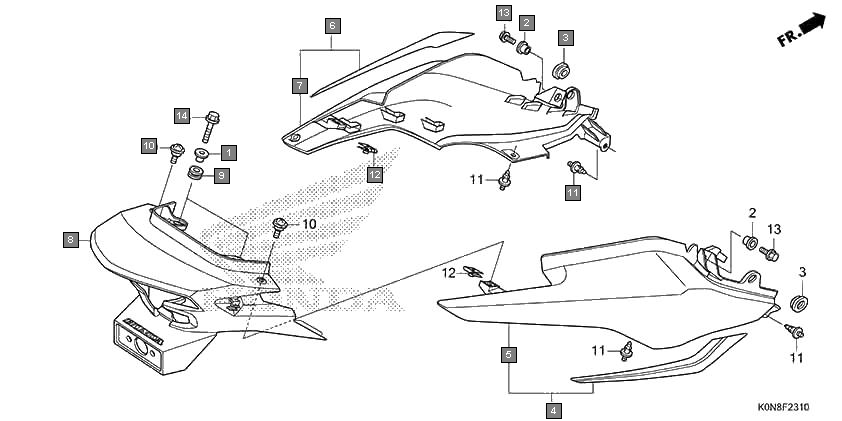

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 2 |
2 | 61101K55600 | COLLAR, FR. FENDER SETTING | 2 |
3 | 64413KSSC00 | GROMMET, BODY COVER | 2 |
4 | 77260K0ND00ZB | COWL SET, R. RR.(WL) *TYPE4* | 1 |
5 | 77260K0ND00ZE | COWL SET, R. RR.(WL) *TYPE1* | 1 |
6 | 77260K0ND00ZA | COWL SET, R. RR.(WL) *TYPE5* | 1 |
7 | 77261K0ND00ZC | COWL, R. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
8 | 77270K0ND00ZB | COWL SET, L. RR.(WL) *TYPE4* | 1 |
9 | 77270K0ND00ZE | COWL SET, L. RR.(WL) *TYPE1* | 1 |
10 | 77270K0ND00ZA | COWL SET, L. RR.(WL) *TYPE5* | 1 |
11 | 77271K0ND00ZC | COWL, L. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
12 | 77280K0ND00ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 |
13 | 83545KCJ690 | RUBBER, SIDE COVER | 2 |
14 | 90101GE0000 | SCREW, HINGE PATCH | 2 |
15 | 90116SP0003 | CLIP, BUMPER SEAL | 4 |
16 | 90320KTE600 | NUT, SPRING, 5MM | 2 |
17 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
18 | 957010602508 | BOLT, FLANGE, 6X25 | 2 |
