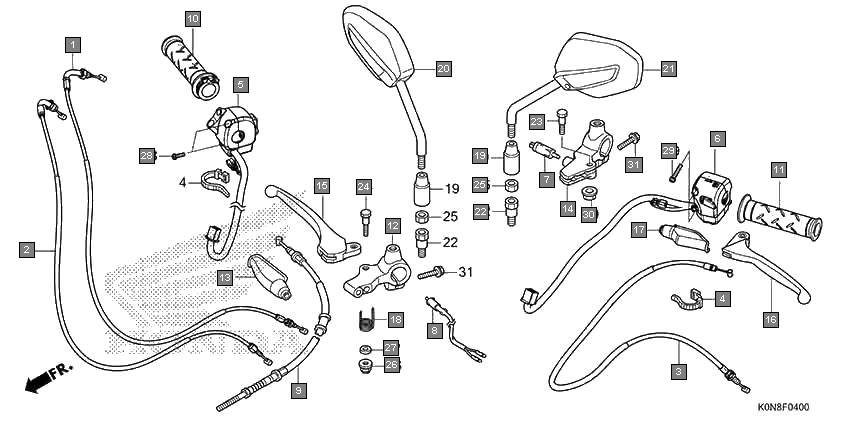

Motorcycles SP125 CBF125ML Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910K0ND01 CABLE COMP. A, THROTTLE (HI-LEX) 1
2 17910K0N600 CABLE COMP. A, THROTTLE 1
3 17920K0N600 CABLE COMP. B, THROTTLE 1
4 17920K0ND01 CABLE COMP. B, THROTTLE (HI-LEX) 1
5 22870K0N600 CABLE COMP., CLUTCH 1
6 22870K0ND01 CABLE COMP., CLUTCH(HI-LEX) 1
7 32161KSP920 BAND B1, WIRE 2
8 35130K0ND11 SWITCH ASSY., STARTER & ENGINE STOP 1
9 35130K0ND01 SWITCH ASSY., STARTER & ENGINE STOP 1
10 35200K0ND01 SWITCH ASSY., WINKER 1
11 35330KYJ611 SWITCH ASSY., CLUTCH 1
12 35340KTE601 SWITCH ASSY., FR. STOP 1
13 45450K0ND11 CABLE COMP., FR. BRAKE 1
14 53140K0ND00 GRIP COMP., THROTTLE 1
15 53166KSPA70 GRIP, L. HANDLE 1
16 53171K0ND10 BRACKET, R. HANDLE LEVER 1
17 53171KCC900 COVER, R. HANDLE LEVER 1
18 53172KTE930 BRACKET, L. HANDLE LEVER 1
19 53175K0ND10 LEVER COMP., R. HANDLE 1
20 53178K0ND00 LEVER COMP., L. HANDLE 1
21 53179KTC900 COVER, L. HANDLE LEVER 1
22 53199K0ND10 SPRING, BRAKE LEVER RETURN 1
23 88114198D10 CAP, LOCK NUT 2
24 88210K38941ZA MIRROR COMP., R.*NH1* BLACK 1
25 88220K38941ZA MIRROR COMP., L. *NH1*BLACK 1
26 90103K38940 BOLT, ADAPTER, 10MM 2
27 90114428870 BOLT, HANDLE LEVER PIVOT 1
28 90115KTEDB0 BOLT, R. HANDLE LEVER PIVOT 1
29 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
30 90301KWN901 NUT, U, 5MM 1
31 90502KTEDB0 WASHER, 5MM 1
32 938920501607 SCREW-WASHER, 5X16 2
33 938920502507 SCREW-WASHER, 5X25 2
34 9405006000 NUT, FLANGE, 6MM 1
35 960010602507 BOLT, FLANGE, 6X25 1
36 960010602507 BOLT, FLANGE, 6X25 2
