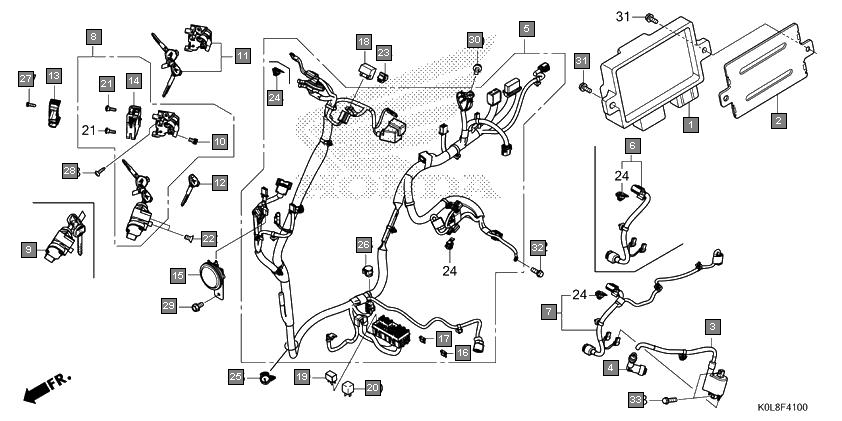

Scooters Activa125 SCV125L Frame Wire harness
Ref.No. Part No. Description Oty
1 30400K0LD11 CONTROL UNIT, ENGINE 1
2 30400K0LD01 CONTROL UNIT, ENGINE 1
3 30400K0LD21 CONTROL UNIT, ENGINE 1
4 30401K0LD00 COVER, ENGINE CONTROL UNIT 1
5 30500K0LD01 COIL ASSY., IGNITION 1
6 30700K0LD01 CAP ASSY., NOISE SUPPRESSOR 1
7 32100K0LD10 HARNESS, WIRE 1
8 32100K0LD00 HARNESS, WIRE 1
9 32100K0LD20 HARNESS, WIRE 1
10 32105K0LD00 SUB HARNESS, ENGINE 1
11 32105K0LD10 SUB HARNESS, ENGINE 1
12 35010K0LD00 KEY SET 1
13 35102K0LD01 SWITCH ASSY. SET, COMBINATION & LOCK 1
14 35109K86D01 BOLT, SOCKET, 5X8(MINDA) 1
15 35110K0LD01 KEY, SHUTTER 1
16 35121K86D00 KEY, BLANK (D0KEYTOP2REPORDER) 1
17 35191K0LD01 COVER, CABLE 1
18 35195K0LD01 SWITCH ASSY., FUEL LID & SEAT OPENER 1
19 38110K0LD01 HORN COMP. 1
20 38221SNAA31 FUSE, BLADE(7.5A) 6
21 38221SNAA31 FUSE, BLADE(7.5A) 5
22 38221SNAA61 FUSE, BLADE(20A) 1
23 38301K0LD01 RELAY COMP., WINKER (STAR ENGINEERS) 1
24 38501KWN901 RELAY COMP., POWER (MICRO ISO 4P)(OMRON) 1
25 38501KVZ631 RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA) 1
26 38502KWN901 RELAY COMP., POWER(5P) (PANASONIC) 1
27 90101MT4000 SCREW, SCREEN SETTING 2
28 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
29 91535STK003 CLIP, COUPLER(DARK BLUE) 1
30 91535TA0003 CLIP, COUPLER(DARK BROWN) 2
31 91535TA0003 CLIP, COUPLER(DARK BROWN) 3
32 91558K0LD01 CLIP, WIRE HARNESS 1
33 91771MKKH11 CAP, DUMMY(6P)(RED) 1
34 9390124320 SCREW, TAPPING, 4X12 1
35 9390334420 SCREW, TAPPING, 4X16 1
36 957010601200 BOLT, FLANGE, 6X12 1
37 957010601208 BOLT, FLANGE, 6X12 1
38 957010601400 BOLT, FLANGE, 6X14 2
39 960010601600 BOLT, FLANGE, 6X16 1
40 960010602200 BOLT, FLANGE, 6X22 2
